Register a user

The AM UI includes pages for users to register themselves. You can also create a RESTful application that uses the user self-service features.

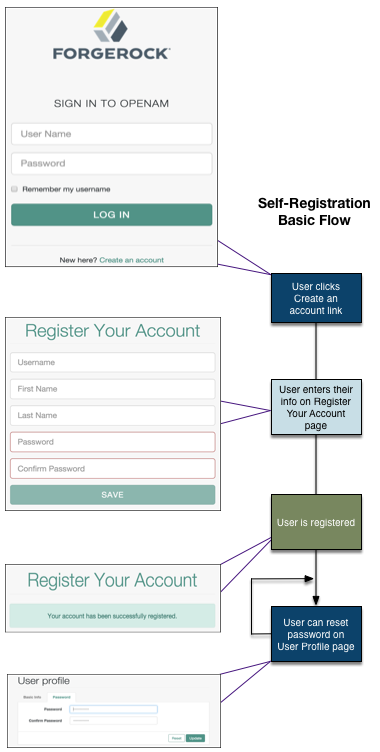

AM’s User Self-Registration basic flow with optional features disabled.
Figure 1. User self-registration basic flow (UI)

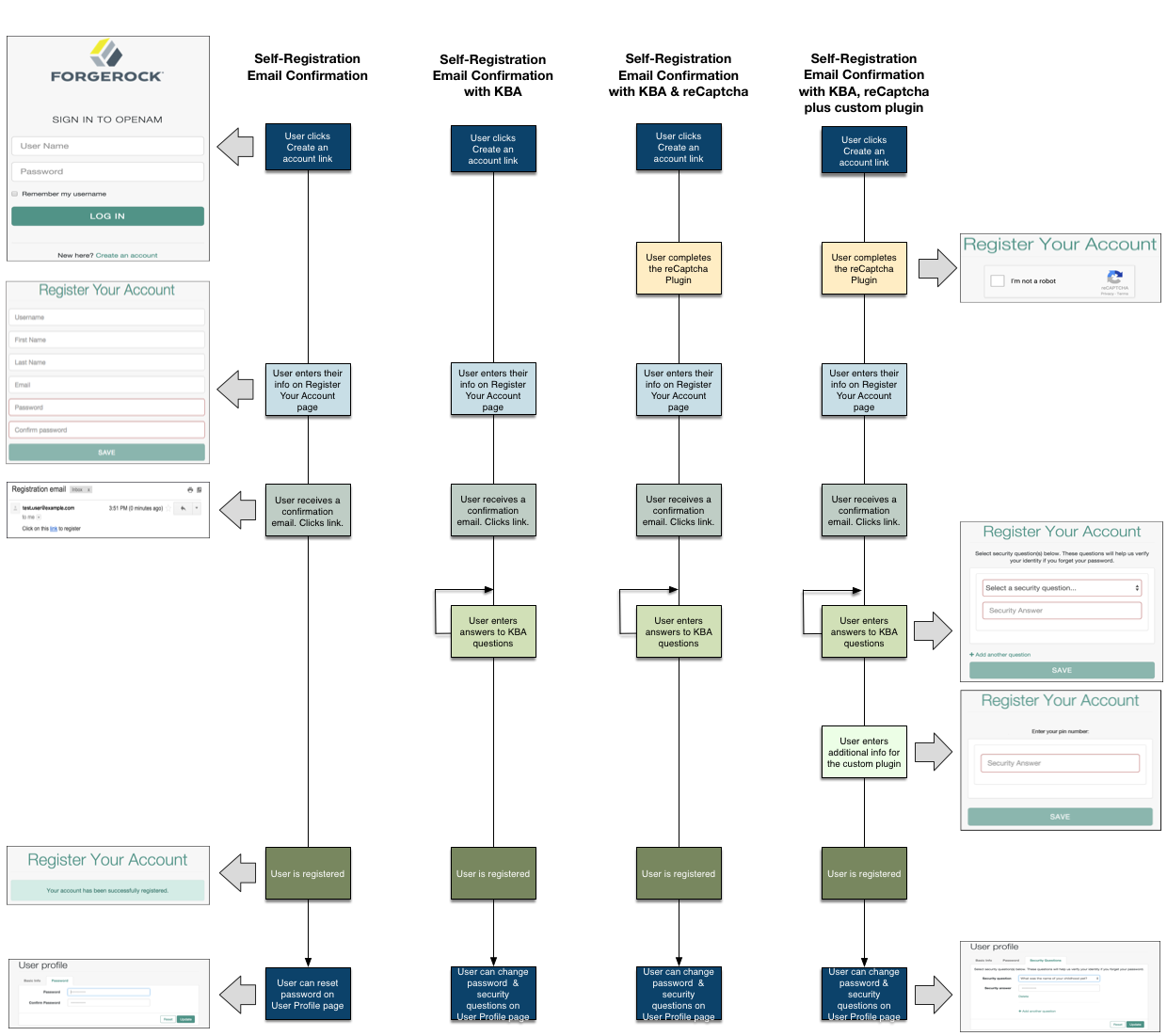

User self-registration flow with options (UI)
AM’s user self-registration supports various user flows, depending on how you configure your options.

When performing user self-service functions, you can enable one or more security methods, such as email validation, Google reCAPTCHA, knowledge-based authentication, or custom plugins. Each configured security method requires requests to be sent from AM to the client, and completed responses returned to AM to verify.

A unique token is provided in the second request to the client that must be used in any subsequent responses, so that AM can maintain the state of the user self-service process.

By default, the user self-registration flow validates the email address after the user has provided their details.

Register a user over REST

Before performing the steps in this procedure, ensure that Verify Email before User Detail (Realms > Realm Name > Services > User Self-Service > User Registration) is disabled.

  1. Create a GET request to the /selfservice/userRegistration endpoint.

    Notice that the request does not require any form of authentication:

    $ curl \
--header "Accept-API-Version: resource=1.0, protocol=1.0" \
"https://am.example.com:8443/am/json/realms/root/selfservice/userRegistration"
{
   "requirements": {
     "$schema": "http://json-schema.org/draft-04/schema#",
     "description": "New user details",
     "properties": {
        "user": {
            "description": "User details",
            "type": "object"
        }
     },
     "required": [
        "user"
     ],
     "type": "object"
   },
   "tag": "initial",
   "type": "userDetails"
}

    AM sends a request to complete the user details. The required array defines the data that must be returned to AM to progress past this step of the registration. In the example, the required type is a user object that contains the user details.

  2. Create a POST response back to the /selfservice/userRegistration endpoint with a query string containing _action=submitRequirements. In the POST data, include an input element in the JSON structure, which should contain values for each element in the required array of the request.

    In this example, AM requests an object named user. Ths object should contain values for the username, givenName, sn, mail, userPassword, and inetUserStatus properties:

    $ curl \
--header "Accept-API-Version: resource=1.0, protocol=1.0" \
--request POST \
--header "Content-Type: application/json" \
--data \
'{
    "input": {
       "user": {
         "username": "bjensen",
         "givenName": "Babs",
         "sn": "Jensen",
         "mail":"bjensen@example.com",
         "userPassword": "Ch4ng31t",
         "inetUserStatus": "Active"
       }
    }
}' \
"https://am.example.com:8443/am/json/realms/root/selfservice/userRegistration?_action=submitRequirements"
{
    "requirements": {
      "$schema": "http://json-schema.org/draft-04/schema#",
      "description": "Verify emailed code",
      "properties": {
         "code": {
             "description": "Enter code emailed",
             "type": "string"
         }
      },
      "required": [
          "code"
      ],
      "type": "object"
    },
    "tag": "validateCode",
    "token": "eyJ0eXAiOiJKV…​..QiLCJjmqrlqUfQ",
    "type": "emailValidation"
}

    If the response is accepted, AM continues with the registration process and sends the next request for information.

    The value of the token element should be included in this and any subsequent responses to AM for this registration; AM uses this information to track which stage of the registration process is being completed.

    Note that the request for information is of the type emailValidation. Other possible types include:

    • captcha, if the Google reCAPTCHA plugin is enabled

    • kbaSecurityAnswerDefinitionStage, if knowledge-based security questions are required

    For an example of Google reCAPTCHA validation, see Retrieve forgotten usernames.

  3. Return the information required by the next step of the registration, along with the token element.

    In this example, the user information was accepted and a code was emailed to the email address. AM requires this code in the response in an element named code before continuing:

    $ curl \
--request POST \
--header "Content-Type: application/json" \
--header "Accept-API-Version: resource=1.0, protocol=1.0" \
--data \
'{
    "input": {
        "code": "cf53fcb6-3bf2-44eb-a437-885296899699"
    },
    "token": "eyJ0eXAiOiJKV…​..QiLCJjmqrlqUfQ"
}' \
"https://am.example.com:8443/am/json/realms/root/selfservice/userRegistration?_action=submitRequirements"
{
    "type": "selfRegistration",
    "tag": "end",
    "status": {
        "success": true
    },
    "additions": {}
}

    When the process is complete, the response from AM has a tag property with value of end. If the success property in the status object has a value of true, then self-registration is complete and the user account was created.

    In the example, AM only required email verification to register a new user. In flows containing Google reCAPTCHA validation or knowledge-based security questions, you would continue returning POST data to AM containing the requested information until the process is complete.

Register a user over REST (backwards-compatible mode)

Before performing the steps in this procedure, ensure that Verify Email before User Detail (Realms > Realm Name > Services > User Self-Service > User Registration) is enabled.

  1. Create a GET request to the /selfservice/userRegistration endpoint.

    Notice that the request does not require any form of authentication:

    $ curl \
--header "Accept-API-Version: resource=1.0, protocol=1.0" \
"https://am.example.com:8443/am/json/realms/root/selfservice/userRegistration"
{
   "type":"emailValidation",
   "tag":"initial",
   "requirements":{
      "$schema":"http://json-schema.org/draft-04/schema#",
      "description":"Verify your email address",
      "type":"object",
      "required":[
         "mail"
      ],
      "properties":{
         "mail":{
            "description":"Email address",
            "type":"string"
         }
      }
   }
}

    AM sends the first request for security information. In this example, the first request is of type emailValidation, but other types include captcha, if the Google reCAPTCHA plugin is enabled, and kbaSecurityAnswerDefinitionStage, if knowledge-based authentication is required.

    The required array defines the data that must be returned to AM to progress past this step of the registration.

    The properties element contains additional information about the required response, such as a description of the required field, or the site key required to generate a reCAPTCHA challenge.

  2. Create a POST response back to the /selfservice/userRegistration endpoint with a query string containing _action=submitRequirements. In the POST data, include an input element in the JSON structure, which should contain values for each element in the required array of the request.

    In this example, a mail value was requested:

    $ curl \
--request POST \
--header "Content-Type: application/json" \
--header "Accept-API-Version: resource=1.0, protocol=1.0" \
--data \
'{
    "input": {
        "mail": "bjensen@example.com"
    }
}' \
"https://am.example.com:8443/am/json/selfservice/userRegistration?_action=submitRequirements"
{
   "type":"emailValidation",
   "tag":"validateCode",
   "requirements":{
      "$schema":"http://json-schema.org/draft-04/schema#",
      "description":"Verify emailed code",
      "type":"object",
      "required":[
         "code"
      ],
      "properties":{
         "code":{
            "description":"Enter code emailed",
            "type":"string"
         }
      }
   },
   "token":"eyAicHis…​PIF-lN4s"
}

    If the response was accepted, AM continues with the registration process and sends the next request for information. In this example, the email address was accepted and a code was emailed to the address, which AM requires in the response in an element named code before continuing.

    The value of the token element should be included in this and any subsequent responses to AM for this registration.

  3. Continue returning POST data to AM containing the requested information, in the format specified in the request. Also return the token value in the POST data, so that AM can track which stage of the registration process is being completed:

    $ curl \
--request POST \
--header "Content-Type: application/json" \
--header "Accept-API-Version: resource=1.0, protocol=1.0" \
--data \
'{
    "input": {
        "code": "cf53fcb6-3bf2-44eb-a437-885296899699"
    },
    "token": "eyAicHis…​PIF-lN4s"
}' \
"https://am.example.com:8443/am/json/selfservice/userRegistration?_action=submitRequirements"
{
   "type":"userDetails",
   "tag":"initial",
   "requirements":{
      "$schema":"http://json-schema.org/draft-04/schema#",
      "description":"New user details",
      "type":"object",
      "required":[
         "user"
      ],
      "properties":{
         "user":{
            "description":"User details",
            "type":"object"
         }
      }
   },
   "token":"eyAicHis…​PIF-lN4s"
}

  4. When requested—when the type value in the request is userDetails—supply the details of the new user as an object in the POST data:

    $ curl \
--request POST \
--header "Content-Type: application/json" \
--header "Accept-API-Version: resource=1.0, protocol=1.0" \
--data \
'{
    "input": {
        "user": {
            "username": "bjensen",
            "givenName": "Babs",
            "sn": "Jensen",
            "userPassword": "Ch4ng31t",
            "inetUserStatus": "Active"
        }
    },
    "token": "eyAicHis…​PIF-lN4s"
}' \
"https://am.example.com:8443/am/json/selfservice/userRegistration?_action=submitRequirements"
{
     "type": "selfRegistration",
     "tag": "end",
     "status": {
     "success": true
     },
     "additions": {}
}

    When the process is complete, the tag element has a value of end. If the success element in the status element has a value of true, then self-registration is complete and the user account was created.

The user self-service feature provides options to set the user’s destination after a successful self-registration. These options include redirecting the user to a 'successful registration' page, to the login page, or automaticatically logging the user into the system. Use the Destination After Successful Self-Registration property to set the option (on the console: Realm Name > Services > User Self-Service > User Registration). When you select User sent to 'successful registration' page or User sent to login page, the JSON response after a successful registration is as follows:

{
   "type": "selfRegistration",
   "tag": "end",
   "status": {
       "success": true
   },
   "additions": {}
}

If you select User is automatically logged in, the JSON response is:

{
    "type": "autoLoginStage",
    "tag": "end",
    "status": {
        "success": true
    },
    "additions": {
        "tokenId": "AQIC5…​MQAA*",
        "successUrl": "/am/console"
    }
}
