PingAM Auth node reference

Password Collector node

The Password Collector node prompts the user to enter their password.

Example

This simple login journey demonstrates the Password Collector.

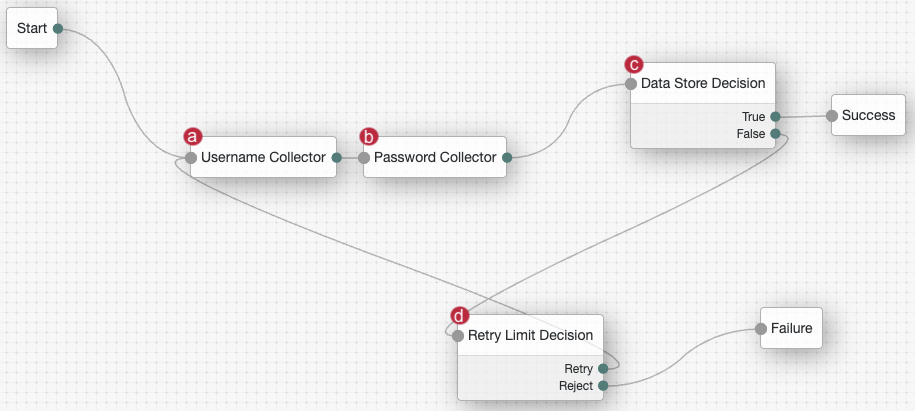

Simple login journey

a The Username Collector node node prompts the user to enter their username.

b The Password Collector node node prompts the user to enter their password.

c The Data Store Decision node locates the user in the backend identity store and determines if the credentials are correct:

  • If the credentials are correct, the journey follows the succcess outcome and the user is authenticated.

  • If the credentials aren’t correct, the node directs the user to the Retry Limit Decision node.

d The Retry Limit Decision node determines how many times the user has attempted these credentials:

  • If the number of attempts doesn’t exceed the maximum, the user is redirected to the Username Collector node to attempt their credentials again.

  • If the number of attempts exceeds the maximum, the journey follows the failure outcome.

Availability

Product Available?

PingOne Advanced Identity Cloud

No

PingAM (self-managed)

Yes

Ping Identity Platform (self-managed)

No

Inputs

None. This node doesn’t read shared state data.

Dependencies

This node has no dependencies.

Configuration

This node has no configurable properties.

Outputs

The node writes the captured password to transient state. This persists only until the authentication flow reaches the next node requiring user interaction.

Callbacks

The node sends a PasswordCallback, which prompts the user to enter their password.

Outcomes

Single outcome path.

Evaluation continues after capturing the password.

Errors

This node doesn’t log any error or warning messages of its own.
