Webex Connector

This is a SaaS common connector.

The Webex connector allows you to manage users and groups between Webex Control Hub and IDM. A Webex administrator account is required for the connector to work.

Before you start

Create a Webex developer account.
Create an integration application. Add the required scopes to manage users, groups, licenses, and roles. Minimum scope required:
- spark-admin:people_write
- spark-admin:people_read
- spark-admin:licenses_read
- spark-admin:roles_read
- identity:groups_rw
- identity:groups_read
Remember to save the client secret and client id and get a refresh token.

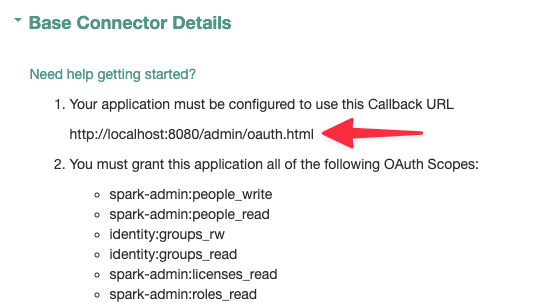

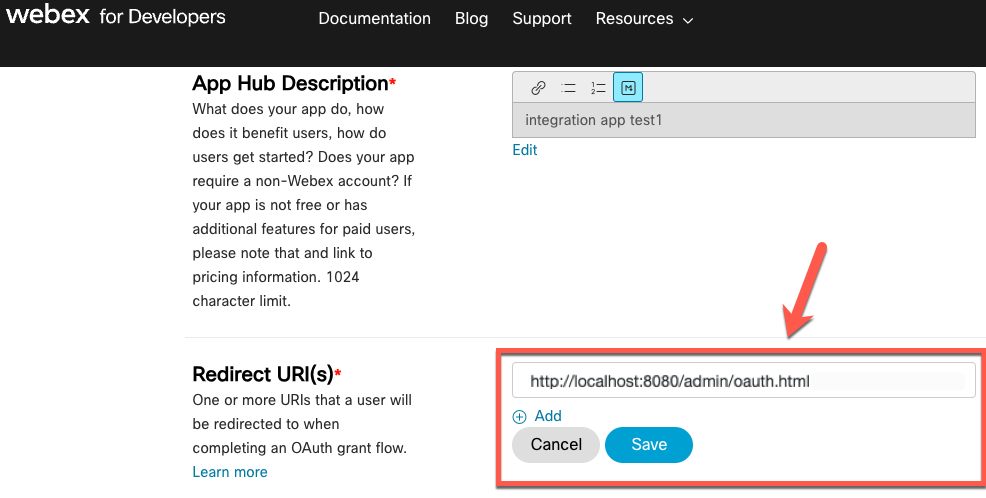

A refresh_token is not required when configuring the Connector via the UI.

Install the Webex connector

If you are looking for the Advanced Identity Cloud application for this connector, refer to:

You can download any connector from Backstage, but some are included in the default deployment for Advanced Identity Cloud, IDM, or RCS. When using an included connector, you can skip installing it and move directly to configuration.

Connector included in default deployment
Connector	IDM	RCS
Webex	No	No

Download the connector .jar file from Backstage.

If you are running the connector locally, place it in the /path/to/openidm/connectors directory, for example:
```
mv ~/Downloads/webex-connector-1.5.20.23.jar /path/to/openidm/connectors/
```
If you are using a remote connector server (RCS), place it in the /path/to/openicf/connectors directory on the RCS.

Configure the Webex connector

Create a connector configuration using the IDM admin UI:

From the navigation bar, click Configure > Connectors.
On the Connectors page, click New Connector.
On the New Connector page, type a Connector Name.
From the Connector Type drop-down list, select Webex Connector - 1.5.20.23.
Complete the Base Connector Details.

For a list of all configuration properties, refer to Webex Connector Configuration
Click Save.

When your connector is configured correctly, the connector displays as Active in the admin UI.

Refer to this procedure to create a connector configuration over REST.

Base Connector Details

Webex Endpoint : https://webexapis.com/v1
Use Basic Auth For OAuth Token Neg : true | false
Max connections: Max size of the http connection pool used. Defaults to 10.
Connection Timeout (seconds): Defines a timeout for the underlying http connection in seconds. Defaults to 30.

Authentication

Token Endpoint: https://webexapis.com/v1/access_token
Client ID: Your Client ID.
Client Secret: Your Client Secret.
Refresh Token: Your Refresh Token.

Additional Options

Read rate limit: 2.5
Write read limi: 2.5

Object Types

If necessary, add or edit your object types to have these three objects with their properties:

__ACCOUNT__

PROPERTY NAME TYPE NATIVE TYPE REQUIRED

PROPERTY NAME	TYPE	NATIVE TYPE	REQUIRED
`_id`	String	String	NO
`firstName`	String	String	NO
`lastName`	String	String	NO
`displayName`	String	String	YES
`emails`	Array	String	YES
`avatar`	String	String	NO
`licenses`	Array	String	YES
`groups`	Array	String	NO
`roles`	Array	String	NO
`extension`	String	String	NO
`locationId`	String	String	NO
`orgId`	String	String	NO
`department`	String	String	NO
`manager`	String	String	NO
`managerId`	String	String	NO
`title`	String	String	NO
`siteUrls`	Array	String	NO
`phoneNumbers`	Array	Object	NO
`addresses`	Array	Object	NO

_id

String

firstName

String

lastName

String

displayName

String

YES

emails

Array

String

YES

avatar

String

licenses

Array

String

YES

groups

Array

String

roles

Array

String

extension

String

locationId

String

orgId

String

department

String

manager

String

managerId

String

title

String

siteUrls

Array

String

phoneNumbers

Array

Object

addresses

Array

Object

__GROUP__

PROPERTY NAME TYPE NATIVE TYPE REQUIRED

PROPERTY NAME	TYPE	NATIVE TYPE	REQUIRED
`_id`	String	String	NO
`displayName`	String	String	YES
`orgId`	String	String	NO
`description`	String	String	NO
`members`	Array	Object	NO

_id

String

displayName

String

YES

orgId

String

description

String

members

Array

Object

Roles

PROPERTY NAME TYPE NATIVE TYPE REQUIRED

PROPERTY NAME	TYPE	NATIVE TYPE	REQUIRED
`id`	String	String	NO
`name`	String	String	NO

id

String

name

String

Licenses

PROPERTY NAME TYPE NATIVE TYPE REQUIRED

PROPERTY NAME	TYPE	NATIVE TYPE	REQUIRED
`id`	String	String	NO
`name`	String	String	NO
`totalUnits`	Integer	Integer	NO
`consumedUnits`	Integer	Integer	NO
`subscriptionId`	String	String	NO
`siteUrl`	String	String	NO
`siteType`	String	String	NO

id

String

name

String

totalUnits

Integer

consumedUnits

Integer

subscriptionId

String

siteUrl

String

siteType

String

If configuring the connector over REST or through the filesystem, specify the connection details to the Webex resource provider in the configurationProperties for the connector. If you are using OAuth for your connection, the minimum required properties are serviceUri, tokenEndpoint, refreshToken, clientId, and clientSecret. The readRateLimit and writeRateLimit fields are for limiting the rate of requests. The recommended rate is 2.5.

Sample Configuration

{
    "configurationProperties" : {
        "tokenExpiration" : null,
        "accessToken" : null,
        "serviceUri" : "https://webexapis.com/v1",
        "readRateLimit" : "2.5",
        "login" : null,
        "password" : null,
        "writeRateLimit" : "2.5",
        "authenticationMethod" : "OAUTH",
        "tokenEndpoint" : "https://webexapis.com/v1/access_token",
        "clientId" : "k3..........5g",
        "clientSecret" : "xxxxxxxxxxxxxxxxxx",
        "refreshToken" : "xxxxxxxxxxxxxxxxxx",
        "authToken" : null,
        "acceptSelfSignedCertificates" : false,
        "disableHostNameVerifier" : false,
        "disableHttpCompression" : false,
        "clientCertAlias" : null,
        "clientCertPassword" : null,
        "maximumConnections" : "10",
        "httpProxyHost" : null,
        "httpProxyPort" : null,
        "httpProxyUsername" : null,
        "httpProxyPassword" : null,
        "connectionTimeout" : "30",
        "grantType" : "refresh_token",
        "scope" : null,
        "authorizationTokenPrefix" : "Bearer",
        "useBasicAuthForOauthTokenNeg" : true
    }
}

On startup, IDM encrypts the value of the clientSecret and refreshToken.

Mapping

From Webex users to OpenIDM Users

Attributes Grid: Where the columns represent the attribute name mapped from source to target and the necessary data transformation to synchronize successfully.

SOURCE TARGET TRANSFORMATION SCRIPT

SOURCE	TARGET	TRANSFORMATION SCRIPT
`id`	`_id`	N/A
`email`	`emails`	N/A
`lastName`	`sn`	N/A
`firstname`	`givenName`	N/A
`displayName`	`displayName`	N/A
`extension`	`extension`	N/A
`locationId`	`locationId`	N/A
`avatar`	`avatar`	N/A
`title`	`title`	N/A
`orgId`	`orgId`	N/A
`department`	`department`	N/A
`roles`	`roles`	N/A
`licenses`	`licenses`	N/A
`addresses`	`addresses`	N/A
`siteUrls`	`siteUrls`	N/A
`phoneNumbers`	`phoneNumbers`	N/A
`manager`	`manager`	N/A
`managerId`	`managerId`	N/A

id

_id

N/A

email

emails

N/A

lastName

sn

N/A

firstname

givenName

N/A

displayName

N/A

extension

N/A

locationId

N/A

avatar

N/A

title

N/A

orgId

N/A

department

N/A

roles

N/A

licenses

N/A

addresses

N/A

siteUrls

N/A

phoneNumbers

N/A

manager

N/A

managerId

N/A

From OpenIDM Users to Webex Users

Attributes Grid: Where the columns represent the attribute name mapped from source to target and the necessary data transformation to synchronize successfully.

This mapping depends on the previous mapping.

SOURCE TARGET TRANSFORMATION SCRIPT

SOURCE	TARGET	TRANSFORMATION SCRIPT
`_id`	`id`	N/A
`sn`	`firstName`	N/A
`givenName`	`lastName`	N/A
`displayName`	`displayName`	N/A
`emails`	`emails`	N/A
`roles`	`roles`	N/A
`licenses`	`licenses`	N/A
`addresses`	`addresses`	N/A
`siteUrls`	`siteUrls`	N/A
`phoneNumbers`	`phoneNumbers`	N/A
`department`	`department`	N/A
`extension`	`extension`	N/A
`avatar`	`avatar`	N/A
`locationId`	`locationId`	N/A
`manager`	`manager`	N/A
`managerId`	`managerId`	N/A
`title`	`title`	N/A
`orgId`	`orgId`	N/A

_id

id

N/A

sn

firstName

N/A

givenName

lastName

N/A

displayName

N/A

emails

N/A

roles

N/A

licenses

N/A

addresses

N/A

siteUrls

N/A

phoneNumbers

N/A

department

N/A

extension

N/A

avatar

N/A

locationId

N/A

manager

N/A

managerId

N/A

title

N/A

orgId

N/A

From Webex Groups to OpenIDM Groups

Attributes Grid: Where the columns represent the attribute name mapped from source to target and the necessary data transformation to synchronize successfully.

SOURCE TARGET TRANSFORMATION SCRIPT

SOURCE	TARGET	TRANSFORMATION SCRIPT
`id`	`_id`	N/A
`displayName`	`displayName`	N/A
`orgId`	`orgId`	N/A
`members`	`members`	N/A
`description`	`description`	N/A

id

_id

N/A

displayName

N/A

orgId

N/A

members

N/A

description

N/A

From OpenIDM Groups to Webex Groups

Attributes Grid: Where the columns represent the attribute name mapped from source to target and the necessary data transformation to synchronize successfully.

This mapping depends on the previous mapping.

SOURCE TARGET TRANSFORMATION SCRIPT

SOURCE	TARGET	TRANSFORMATION SCRIPT
`displayName`	`displayName`	N/A
`groupManagementType`	`group_management_type`	N/A
`groupExternalId`	`group_external_id`	N/A
`members`	`members`	N/A

displayName

N/A

groupManagementType

group_management_type

N/A

groupExternalId

group_external_id

N/A

members

N/A

Test the Webex connector

Test that the connector was configured correctly:

curl \
--header "X-OpenIDM-Username: openidm-admin" \
--header "X-OpenIDM-Password: openidm-admin" \
--header 'Accept-API-Version: resource=1.0' \
--request POST \
'http://localhost:8080/system/webex?_action=test'
{
    "name": "Webex",
    "enabled": true,
    "config": "config/provisioner.openicf/Webex",
    "connectorRef": {
        "bundleVersion": "1.5.20.23",
        "bundleName": "org.forgerock.openicf.connectors.webex-connector",
        "connectorName": "org.forgerock.openicf.connectors.webex.WebexConnector"
    },
    "displayName": "Webex Connector",
    "objectTypes": [
        "__GROUP__",
        "__ACCOUNT__",
        "ROLES",
        "__ALL__",
        "LICENSES"
    ],
    "ok": true
}

Use the Webex connector

User

Create user

To create a user, it is necessary to at least provide the email and displayName fields. Some fields, such as extension, locationId, or siteUrls require their respective licenses. Field locationId requires the extension field, and locationId and phoneNumbers fields are mutually exclusive.

It is possible that licenses will be added by default, so it is advisable to perform a reconciliation to be up to date.

If you create a user with a role or license (bad format) that is not allowed to be assigned or with an incorrect avatar URL, the user is still created with the exception of the fields that failed:

curl \
--header "X-OpenIDM-Username: openidm-admin" \
--header "X-OpenIDM-Password: openidm-admin" \
--header 'Content-Type: application/json' \
--request POST \
--data '{
    "displayName" : "John Doe",
    "firstName" : "John",
    "LastName" : "Doe",
    "groups" : [
            "groupId",
            "groupId"
    ],
    "emails" : [
        "john.doe@example.com"
    ],
    "licenses" : [
        "licenseId"
    ],
    "roles" : [
        "roleId"
    ],
    "extension" : "123",
    "avatar" : "urlAvatar",
    "title" : "Title",
    "department" : "Sales",
    "manager" : "Manager Name",
    "managerId" : "managerId",
    "phoneNumbers": [
        {
          "type": "work",
          "value": "+1 010 110 1101"
        }
    ],
    "addresses": [
        {
          "type": "work",
          "country": "US",
          "locality": "Milpitas",
          "region": "California",
          "streetAddress": "1111 Bird Ave.",
          "postalCode": "010101"
        }
    ],
    "siteUrls": [
        "mysite.webex.com#attendee"
    ],
    "orgId" : "orgId",
    "locationId" : "locationId"
}'\
'http://localhost:8080/openidm/system/webex/__ACCOUNT__?_action=create'
{
    "_id" : "userId",
    "displayName" : "John Doe",
    "firstName" : "John",
    "LastName" : "Doe",
    "groups" : [
            "groupId",
            "groupId"
    ],
    "emails" : [
        "john.doe@example.com"
    ],
    "licenses" : [
        "licenseId"
    ],
    "roles" : [
        "roleId"
    ],
    "extension" : "123",
    "avatar" : "urlAvatar",
    "title" : "Title",
    "department" : "Sales",
    "manager" , "Manager Name",
    "managerId" : "managerId",
    "phoneNumbers": [
        {
          "type": "work",
          "value": "+1 010 110 1101"
        }
    ],
    "addresses": [
        {
          "type": "work",
          "country": "US",
          "locality": "Milpitas",
          "region": "California",
          "streetAddress": "1111 Bird Ave.",
          "postalCode": "010101"
        }
    ],
    "siteUrls": [
        "mysite.webex.com#attendee"
    ],
    "orgId" : "orgId",
    "locationId" : "locationId"
}

Get Users

Retrieve a list of user ids from Webex. By default, retrieves all users:

curl \
--header "X-OpenIDM-Username: openidm-admin" \
--header "X-OpenIDM-Password: openidm-admin" \
--header 'Content-Type: application/json' \
--request GET \
'http://localhost:8080/openidm/system/webex/__ACCOUNT__?_queryId=query-all-ids'
{
    "result": [
        {
            "_id" : "001"
        },
        {
            "_id" : "002"
        },
        {
            "_id" : "003"
        },
    ],
    "resultCount": 999,
    "pagedResultsCookie": null,
    "totalPagedResultsPolicy": "NONE",
    "totalPagedResults": -1,
    "remainingPagedResults": -1
}

Get user

Retrieve a user from Webex. The user id must be provided in the URI path.

The locationId and extension fields will only be displayed if they have their corresponding license:

curl \
--header "X-OpenIDM-Username: openidm-admin" \
--header "X-OpenIDM-Password: openidm-admin" \
--header 'Content-Type: application/json' \
--request GET \
'http://localhost:8080/openidm/system/webex/__ACCOUNT__/ID'
{
    "_id" : "userId",
    "displayName" : "active",
    "firstName" : "active",
    "LastName" : "active",
    "groups" : [
            "groupId",
            "groupId",
    ],
    "emails" : [
        "test@email.com"
    ],
    "licenses" : [
        "licenseId"
    ],
    "roles" : [
        "roleId"
    ],
    "extension" : "gs",
    "avatar" : "avatarURL",
    "title" : "surname",
    "department" : "Sales",
    "manager" , "John Doe",
    "managerId" : "managerId",
    "phoneNumbers": [
        {
          "type": "work",
          "value": "+1 010 110 1101"
        }
    ],
    "addresses": [
        {
          "type": "work",
          "country": "US",
          "locality": "Milpitas",
          "region": "California",
          "streetAddress": "1099 Bird Ave.",
          "postalCode": "99212"
        }
    ],
    "siteUrls": [
        "mysite.webex.com#attendee"
    ],
    "orgId" : true,
    "locationId" : "locationId"
}

Get user emails

Retrieve a user in Webex filtering by the emails field:

curl \
--header "X-OpenIDM-Username: openidm-admin" \
--header "X-OpenIDM-Password: openidm-admin" \
--header 'Content-Type: application/json' \
--request GET \
'http://localhost:8080/openidm/system/webex/__ACCOUNT__?_queryFilter=true&_fields=emails'
{
    "result": [
        {
            "_id" : "001",
            "emails": [
            "email001@example.wbx.ai"
            ],
        },
        {
            "_id" : "003",
            "emails": [
            "email003@example.wbx.ai"
            ],
        },
        {
            "_id" : "003",
            "emails": [
            "email003@example.wbx.ai"
            ],
        }
    ],
    "resultCount": 999,
    "pagedResultsCookie": null,
    "totalPagedResultsPolicy": "NONE",
    "totalPagedResults": -1,
    "remainingPagedResults": -1
}

Get user filter by email

Retrieve a user in Webex filtering by the emails field.

The locationId and extension fields will only be displayed if they have their corresponding license:

curl \
--header "X-OpenIDM-Username: openidm-admin" \
--header "X-OpenIDM-Password: openidm-admin" \
--header 'Content-Type: application/json' \
--request GET \
'http://localhost:8080/openidm/system/webex/__ACCOUNT__?_queryFilter=emails%20eq%20"email@example.wbx.ai"'
{
    "result": [
        {
            "_id": "userId",
            "firstName": "John",
            "displayName": "John Doe",
            "lastName": "Doe",
            "orgId": "orgId",
            "emails": [
                "john@example.wbx.ai"
            ],
            "roles": [
                "roleId"
            ],
            "groups": [],
            "licenses": [
                "licenseId"
            ],
            "__NAME__": "John"
        }
    ]
}

Get user filter starts with

Retrieve a user in Webex filtering by the displayName field. Minimum characters to search for displayName.

The locationId and extension fields will only be displayed if they have their corresponding license:

curl \
--header "X-OpenIDM-Username: openidm-admin" \
--header "X-OpenIDM-Password: openidm-admin" \
--header 'Content-Type: application/json' \
--request GET \
'http://localhost:8080/openidm/system/webex/__ACCOUNT__?_queryFilter=displayName%20sw%20"john"'
{
    "result": [
        {
            "_id": "userId",
            "firstName": "John",
            "displayName": "John Doe",
            "lastName": "Doe",
            "orgId": "orgId",
            "emails": [
                "john@example.wbx.ai"
            ],
            "roles": [
                "roleId"
            ],
            "groups": [
                "groupId_1",
                "groupId_2"
            ],
            "licenses": [
                "licenseId"
            ],
            "__NAME__": "John"
        }
    ],
    "resultCount": 1,
    "pagedResultsCookie": null,
    "totalPagedResultsPolicy": "NONE",
    "totalPagedResults": -1,
    "remainingPagedResults": -1
}

Update user

To update a user, it is necessary to at least provide the email, displayName and licenses fields. To update the locationId, extension, and siteUrls fields, the user must have the corresponding licenses.

locationId requires the extension field. locationId and phoneNumbers are mutually exclusive:

curl \
--header "X-OpenIDM-Username: openidm-admin" \
--header "X-OpenIDM-Password: openidm-admin" \
--header 'Content-Type: application/json' \
--request PUT \
--data '{
    "displayName" : "John Doe",
    "firstName" : "John",
    "LastName" : "Doe",
    "groups" : [
            "groupId",
            "groupId"
    ],
    "emails" : [
        "john.doe@example.com"
    ],
    "licenses" : [
        "licenseId"
    ],
    "roles" : [
        "roleId"
    ],
    "extension" : "123",
    "avatar" : "urlAvatar",
    "title" : "Title",
    "department" : "Sales",
    "manager" , "Manager Name",
    "managerId" : "managerId",
    "phoneNumbers" : [
        {
          "type": "work",
          "value": "+1 010 110 1101"
        }
    ],
    "addresses" : [
        {
          "type": "work",
          "country": "US",
          "locality": "Milpitas",
          "region": "California",
          "streetAddress": "1111 Bird Ave.",
          "postalCode": "010101"
        }
    ],
    "siteUrls": [
        "mysite.webex.com#attendee"
    ],
    "orgId" : "orgId",
    "locationId" : "locationId"
}' \
'http://localhost:8080/system/webex/__ACCOUNT__/USER_ID'
{
    "_id" : "userId",
    "displayName" : "John Doe",
    "firstName" : "John",
    "LastName" : "Doe",
    "groups" : [
            "groupId",
            "groupId",
    ],
    "emails" : [
        "john.doe@example.com"
    ],
    "licenses" : [
        "licenseId"
    ],
    "roles" : [
        "roleId"
    ],
    "extension" : "123",
    "avatar" : "avatarURL",
    "title" : "Title",
    "department" : "Developer",
    "manager" , "Manager Name",
    "managerId" : "managerId",
    "phoneNumbers": [
        {
          "type": "work",
          "value": "+1 010 110 1101"
        }
    ],
    "addresses": [
        {
          "type": "work",
          "country": "US",
          "locality": "Milpitas",
          "region": "California",
          "streetAddress": "1111 Bird Ave.",
          "postalCode": "010101"
        }
    ],
    "siteUrls": [
        "mysite.webex.com#attendee"
    ],
    "orgId" : "orgId",
    "locationId" : "locationId"
}

To update the licenses correctly, it is necessary to deactivate the default licenses and to have the option "Preserve licenses for users joining another group" activated in Webex Control Hub in the user licenses tab.

Delete user

Delete a user from the Webex organization. The user id must be provided in the URI path:

curl \
--header "X-OpenIDM-Username: openidm-admin" \
--header "X-OpenIDM-Password: openidm-admin" \
--header 'Content-Type: application/json' \
--request DELETE \
'http://localhost:8080/openidm/system/webex/__ACCOUNT__/USER_ID'
{
    "_id" : "USER_ID",
    "email" : "deleted.member@email.com",
    ...
}

GROUPS

Create group

To create a group, it is necessary to at least provided displayName field:

curl \
--header "X-OpenIDM-Username: openidm-admin" \
--header "X-OpenIDM-Password: openidm-admin" \
--header 'Content-Type: application/json' \
--request POST \
--data '{
    "displayName" : "Group name",
    "description" : "Group Description",
    "orgId" : "orgId"
}' \
'http://localhost:8080/openidm/system/webex/__GROUP__?_action=create'
{
    "_id" : "groupId",
    "displayName" : "Group name",
    "description" : "Group Description",
    "orgId" : "orgId",
    "members": []
}

Get groups

Retrieve a list of groups showing only the ids. By default returns all groups:

curl \
--header "X-OpenIDM-Username: openidm-admin" \
--header "X-OpenIDM-Password: openidm-admin" \
--header 'Content-Type: application/json' \
--request GET \
'http://localhost:8080/openidm/system/webex/__GROUP__?_queryId=query-all-ids'
{
    "result": [
        {
            "_id" : "groupid1"
        },
        {
            "_id" : "groupId2"
        },
        {
            "_id" : "groupId3",
        },
        ...
    ],
    "resultCount": 999,
    "pagedResultsCookie": null,
    "totalPagedResultsPolicy": "NONE",
    "totalPagedResults": -1,
    "remainingPagedResults": -1
}

Update a group

The fields that can be updated for a group are description and displayName. The group id must be provided in the URI path:

curl \
--header "X-OpenIDM-Username: openidm-admin" \
--header "X-OpenIDM-Password: openidm-admin" \
--header 'Content-Type: application/json' \
--request PUT \
--header 'If-Match: *' \
--data '{
    "displayName" : "New Group Name",
    "description" : "New Description"
}' \
'http://localhost:8080/openidm/system/webex/__GROUP__/GROUP_ID'
{
    "_id" : "groupId",
    "displayName" : "New Group Name",
    "description" : "New Description",
    "orgId" : "orgId",
    "members": []
}

Delete a group

The group id must be provided in the URI path:

curl \
--header "X-OpenIDM-Username: openidm-admin" \
--header "X-OpenIDM-Password: openidm-admin" \
--header 'Content-Type: application/json' \
--request DELETE \
'http://localhost:8080/openidm/system/webex/__GROUP__/GROUP_ID'
{
    "_id" : "groupId",
    "displayName" : "New Group Name",
    "description" : "New Description",
    "orgId" : "orgId",
    "members": []
}

Get Roles

Retrieve a list of roles for Webex users.

curl \
--header "X-OpenIDM-Username: openidm-admin" \
--header "X-OpenIDM-Password: openidm-admin" \
--header 'Content-Type: application/json' \
--request GET \
'http://localhost:8080/openidm/system/webex/ROLES/?_queryFilter=true'
{
    "result" : [
        {
            "_id" : "roleId",
            "__NAME__" : "Role name",
        },
        ...
    ],
    "resultCount": 999,
    "pagedResultsCookie": null,
    "totalPagedResultsPolicy": "NONE",
    "totalPagedResults": -1,
    "remainingPagedResults": -1
}

Get Role

Retrieve a role from the Webex organization. The user id must be provided in the URI path:

curl \
--header "X-OpenIDM-Username: openidm-admin" \
--header "X-OpenIDM-Password: openidm-admin" \
--header 'Content-Type: application/json' \
--request GET \
'http://localhost:8080/openidm/system/webex/ROLES/ROLE_ID'
{
    "_id": "roleId",
    "__NAME__": "Role Name"
}

Get Licenses

Retrieve a list of licenses for Webex users.

curl \
--header "X-OpenIDM-Username: openidm-admin" \
--header "X-OpenIDM-Password: openidm-admin" \
--header 'Content-Type: application/json' \
--request GET \
'http://localhost:8080/openidm/system/webex/LICENSES/?_queryFilter=true'
{
    "result" : [
        {
            "_id" : "LicenseId",
            "name" : "Role Name",
            "totalUnits" : 50,
            "consumedUnits": 1,
            "subscriptionId": "subscriptionId",
            "siteUrl": "site1-example.webex.com",
            "siteType": "Control Hub managed site",
        },
        ...
    ],
    "resultCount": 999,
    "pagedResultsCookie": null,
    "totalPagedResultsPolicy": "NONE",
    "totalPagedResults": -1,
    "remainingPagedResults": -1
}

Get License

Retrieve a user license. The user id must be provided in the URI path:

curl \
--header "X-OpenIDM-Username: openidm-admin" \
--header "X-OpenIDM-Password: openidm-admin" \
--header 'Content-Type: application/json' \
--request GET \
'http://localhost:8080/openidm/system/webex/LICENSES/LICENSE_ID'
{
    "_id": "LicenseId",
    "name": "License Name",
    "totalUnits": "10",
    "subscriptionId": "subscriptionId",
    "siteType": "Control Hub managed site",
    "__NAME__": "License Name",
    "siteUrl": "sityUrl.webex.com"
}

OpenICF Interfaces Implemented by the Webex Connector

The Webex Connector implements the following OpenICF interfaces. For additional details, see ICF interfaces:

Create

Creates an object and its uid.

Delete

Deletes an object, referenced by its uid.

Schema

Describes the object types, operations, and options that the connector supports.

Script on Connector

Enables an application to run a script in the context of the connector.

Any script that runs on the connector has the following characteristics:

The script runs in the same execution environment as the connector and has access to all the classes to which the connector has access.
The script has access to a connector variable that is equivalent to an initialized instance of the connector. At a minimum, the script can access the connector configuration.
The script has access to any script arguments passed in by the application.

Search

Searches the target resource for all objects that match the specified object class and filter.

Test

Tests the connector configuration.

Testing a configuration checks all elements of the environment that are referred to by the configuration are available. For example, the connector might make a physical connection to a host that is specified in the configuration to verify that it exists and that the credentials that are specified in the configuration are valid.

This operation might need to connect to a resource, and, as such, might take some time. Do not invoke this operation too often, such as before every provisioning operation. The test operation is not intended to check that the connector is alive (that is, that its physical connection to the resource has not timed out).

You can invoke the test operation before a connector configuration has been validated.

Update

Updates (modifies or replaces) objects on a target resource.

Webex Connector Configuration

The Webex Connector has the following configurable properties:

Basic Configuration Properties

Property Type Default Encrypted⁽¹⁾ Required⁽²⁾

Property	Type	Default	Encrypted⁽¹⁾	Required⁽²⁾
`serviceUri`	`String`	`null`		Yes
The service endpoint URI.
`readRateLimit`	`String`	`null`		Yes
Defines throttling for read operations either per seconds ("30/sec") or per minute ("100/min").
`login`	`String`	`null`		Yes
The service login name.
`writeRateLimit`	`String`	`null`		Yes
Defines throttling for write operations (create/update/delete) either per second ("30/sec") or per minute ("100/min").
`password`	`GuardedString`	`null`	Yes	No
The service user password.
`authenticationMethod`	`String`	`OAUTH`		Yes
Defines which method is to be used to authenticate on the remote server. Options are BASIC (username/password), OAUTH (Client id/secret) or TOKEN (static token).
`tokenEndpoint`	`String`	`null`		No
When using OAUTH as authentication method, this property defines the endpoint where a new access token should be queried for (https://myserver.com/oauth2/token).
`clientId`	`String`	`null`		Yes
The client identifier for OAuth2.
`clientSecret`	`GuardedString`	`null`	Yes	No
Secure client secret for OAuth2.
`authToken`	`GuardedString`	`null`	Yes	No
Static authentication token.
`acceptSelfSignedCertificates`	`boolean`	`false`		Yes
To be used for debug/test purposes. To be avoided in production.
`disableHostNameVerifier`	`boolean`	`false`		Yes
To be used for debug/test purposes. To be avoided in production.
`disableHttpCompression`	`boolean`	`false`		Yes
Content compression is enabled by default. Set this property to true to disable it.
`clientCertAlias`	`String`	`null`		Yes
If TLS Mutual Auth is needed, set this to the certificate alias from the keystore.
`clientCertPassword`	`GuardedString`	`null`	Yes	Yes
If TLS Mutual Auth is needed and the client certificate (private key) password is different from the keystore password, set this to the client private key password.
`maximumConnections`	`Integer`	`10`		Yes
Defines the max size of the HTTP connection pool used.
`httpProxyHost`	`String`	`null`		Yes
Defines the Hostname if an HTTP proxy is used between the connector and the service.
`httpProxyPort`	`Integer`	`null`		Yes
Defines the Port if an HTTP proxy is used between the connector and the service.
`httpProxyUsername`	`String`	`null`		Yes
Defines Proxy Username if an HTTP proxy is used between the connector and the service.
`httpProxyPassword`	`GuardedString`	`null`	Yes	Yes
Defines Proxy Password if an HTTP proxy is used between the connector and the service.
`connectionTimeout`	`int`	`30`		No
Defines a timeout for the underlying HTTP connection in seconds.
`refreshToken`	`GuardedString`	`null`		No
Used by the refresh_token grant type.
`grantType`	`String`	`null`		No
The OAuth2 grant type to use (client_credentials or refresh_token).
`scope`	`String`	`null`		No
The OAuth2 scope to use.
`authorizationTokenPrefix`	`String`	`Bearer`		No
The prefix to be used in the Authorization HTTP header for Token authentication.
`useBasicAuthForOauthTokenNeg`	`boolean`	`true`		Yes
The Authentication method for refresh token (Basic Authentication or Sending the ClientId and Client Secret in the Header).

serviceUri

String

null

Yes

The service endpoint URI.

readRateLimit

String

null

Yes

Defines throttling for read operations either per seconds ("30/sec") or per minute ("100/min").

login

String

null

Yes

The service login name.

writeRateLimit

String

null

Yes

Defines throttling for write operations (create/update/delete) either per second ("30/sec") or per minute ("100/min").

password

GuardedString

null

Yes

The service user password.

authenticationMethod

String

OAUTH

Yes

Defines which method is to be used to authenticate on the remote server. Options are BASIC (username/password), OAUTH (Client id/secret) or TOKEN (static token).

tokenEndpoint

String

null

When using OAUTH as authentication method, this property defines the endpoint where a new access token should be queried for (https://myserver.com/oauth2/token).

clientId

String

null

Yes

The client identifier for OAuth2.

clientSecret

GuardedString

null

Yes

Secure client secret for OAuth2.

authToken

GuardedString

null

Yes

Static authentication token.

acceptSelfSignedCertificates

boolean

false

Yes

To be used for debug/test purposes. To be avoided in production.

disableHostNameVerifier

boolean

false

Yes

To be used for debug/test purposes. To be avoided in production.

disableHttpCompression

boolean

false

Yes

Content compression is enabled by default. Set this property to true to disable it.

clientCertAlias

String

null

Yes

If TLS Mutual Auth is needed, set this to the certificate alias from the keystore.

clientCertPassword

GuardedString

null

Yes

If TLS Mutual Auth is needed and the client certificate (private key) password is different from the keystore password, set this to the client private key password.

maximumConnections

Integer

10

Yes

Defines the max size of the HTTP connection pool used.

httpProxyHost

String

null

Yes

Defines the Hostname if an HTTP proxy is used between the connector and the service.

httpProxyPort

Integer

null

Yes

Defines the Port if an HTTP proxy is used between the connector and the service.

httpProxyUsername

String

null

Yes

Defines Proxy Username if an HTTP proxy is used between the connector and the service.

httpProxyPassword

GuardedString

null

Yes

Defines Proxy Password if an HTTP proxy is used between the connector and the service.

connectionTimeout

int

30

Defines a timeout for the underlying HTTP connection in seconds.

refreshToken

GuardedString

null

Used by the refresh_token grant type.

grantType

String

null

The OAuth2 grant type to use (client_credentials or refresh_token).

scope

String

null

The OAuth2 scope to use.

authorizationTokenPrefix

String

Bearer

The prefix to be used in the Authorization HTTP header for Token authentication.

useBasicAuthForOauthTokenNeg

boolean

true

Yes

The Authentication method for refresh token (Basic Authentication or Sending the ClientId and Client Secret in the Header).

⁽¹⁾ Whether the property value is considered confidential, and is therefore encrypted in IDM.

⁽²⁾ A list of operations in this column indicates that the property is required for those operations.

ICF 1.5.20.25

Webex Connector

Before you start

Install the Webex connector

Configure the Webex connector

Mapping

Test the Webex connector

Use the Webex connector

User

Create user

Get Users

Get user

Get user emails

Get user filter by email

Get user filter starts with

Update user

Delete user

GROUPS

Create group

Get groups

Update a group

Delete a group

Get Roles

Get Role

Get Licenses

Get License

OpenICF Interfaces Implemented by the Webex Connector

Webex Connector Configuration

Basic Configuration Properties
