Administering an ASE cluster

ASE Cluster runs either in a single cloud or across multiple clouds. All ASE cluster nodes communicate over a TCP connection to continuously synchronize the configuration in real time. Cluster nodes are symmetrical which eliminates a single point of failure. Key features of ASE clustering are:

  • ASE node addition to a live cluster without configuring the node – true auto-scaling

  • Configuration (ase.conf, API JSON files) synchronization across all cluster nodes

  • Update and delete operations using CLI and REST APIs

  • Run time addition or deletion of cluster nodes

  • Real-time blacklist synchronization across cluster

  • A single cluster with nodes spanning across multiple data centers

Several cluster features are unique to the deployed environment including:

  • Authentication token for API gateway (ASE sideband only)

  • Cookie replication across all cluster nodes (ASE inline only)

CLI configuration commands executed at any cluster node are automatically replicated across all cluster nodes. All nodes remain current with respect to configuration modifications. Cluster nodes synchronize SSL certificates across various ASE nodes.

Add or remove a node from the cluster without disrupting any live traffic. The amount of time required to activate a new cluster node is dependent on the time to synchronize the configuration and cookie information from other nodes.

ASE cluster performs real-time synchronization of cookies for ASE inline configurations. This is critical for session mirroring or handling a DNS flip between requests from the same client. Since no master or slave nodes exist, all cluster nodes synchronize cookie information – which means that each node has the same cookies as other nodes.

ASE also synchronizes ase.conf files across cluster nodes with the exception of a few parameters: data ports, management ports, and number of processes.

ASE cluster deployment

ASE cluster is a distributed node architecture. Ping Identity recommends that one cluster node be designated the management node through which all configuration changes are performed. This helps maintain consistency of operations across nodes. However, no restrictions exist on using other nodes in the cluster to make changes. If two different nodes are used to modify the ASE cluster, then the latest configuration change based on time-stamps is synchronized across the nodes.

ASE cluster uses a circular deployment. During setup, the first node of the cluster acts as the central node of the cluster from which all cluster nodes synchronize configuration and cookie data. When the setup of all nodes is complete, the nodes communicate with each other to synchronize the latest session information.

If the first node or management node goes down, the functioning of the other cluster nodes is not affected. Make sure the peer node provided in the cluster.conf is running before adding a new node.

When an ASE cluster is setup, the peer_node parameter must be configured with an IPv4 address and port number. ASE uses this value to connect to other nodes of the cluster. To add new cluster nodes, activate one node at a time. In the following example, the peer_node IP address for all nodes is the IP address of the first node. Each node must wait until the process of adding the previous node is completed.

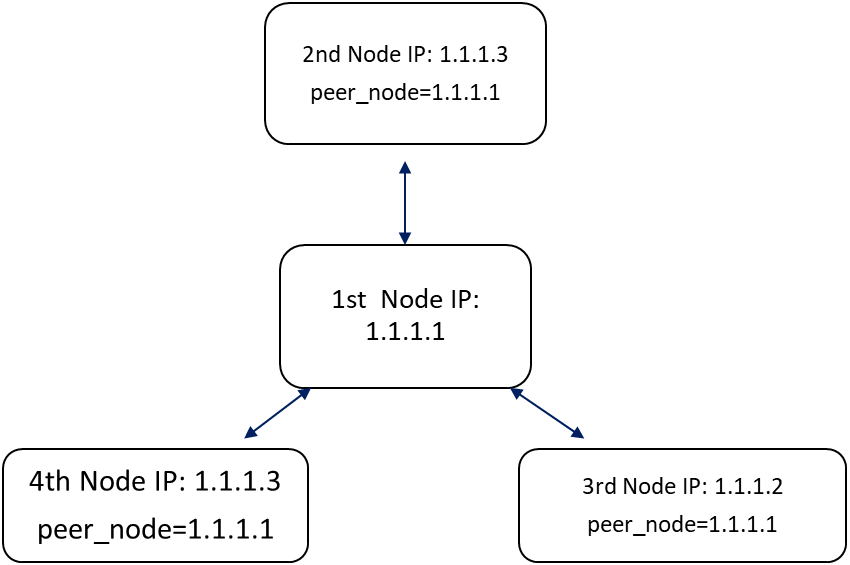

Image of peer node IP addresses

Use the status command to verify status before adding the next node in the cluster.

/opt/pingidentity/ase/bin/cli.sh status -u admin -p
Status: starting

After all cluster nodes are added, use the management or first node to carry out all cluster operations. NOTE: Add one node at a time to the cluster. After the node completes loading data, add the next node

Cluster nodes must be added sequentially, one node at a time, to ensure consistent cluster behavior. The following table lists the items that are synchronized across the cluster:

Item Synchronized (Yes or No) Synchronization (restart or live)

Certificates (keystore)

Yes

Restart

Master key

No

-

API JSON

Yes

Live and restart

Cookies

Yes

Live and restart

CLI admin password

No

No

Authorization token for sideband ASE

Yes

Live and restart

Blacklist and whitelist (create, delete, and delete all)

Yes

Live and restart

Real-time attacks (IP, cookie, and token is blocked)

Yes

Live

ase.conf

Yes

restart

abs.conf

Yes

restart

CLI commands that are not synchronized

The following commands are not synchronized:

  • create_key_pair

  • create_csr

  • create_self_sign_cert

  • import_key_pair

  • import_cert

  • create_management_key_pair

  • create_management_csr

  • create_management_self_sign_cert

  • import_management_key_pair

  • import_management_cert

  • update_password

  • update_auth_method

  • generate_obfkey

  • obfuscate_keys

  • update_keystore_password NOTE: The commands listed above require the entire ASE to restart for the commands to synchronize.

-
