Configure NGINX Plus for PingIntelligence

Complete the following steps to configure the nginx.conf to setup NGINX Plus and PingIntelligence sideband integration:

Create modules directory and download PingIntelligence modules

  1. Create a modules directory in NGINX Plus, if it is not existing already.

    # mkdir /etc/nginx/modules
  2. Download the NGINX Plus - PingIntelligence modules from the download site

  3. Untar the downloaded file.

    # tar -xvzf pi-api-nginx-plus-policy-4.3.tar.gz

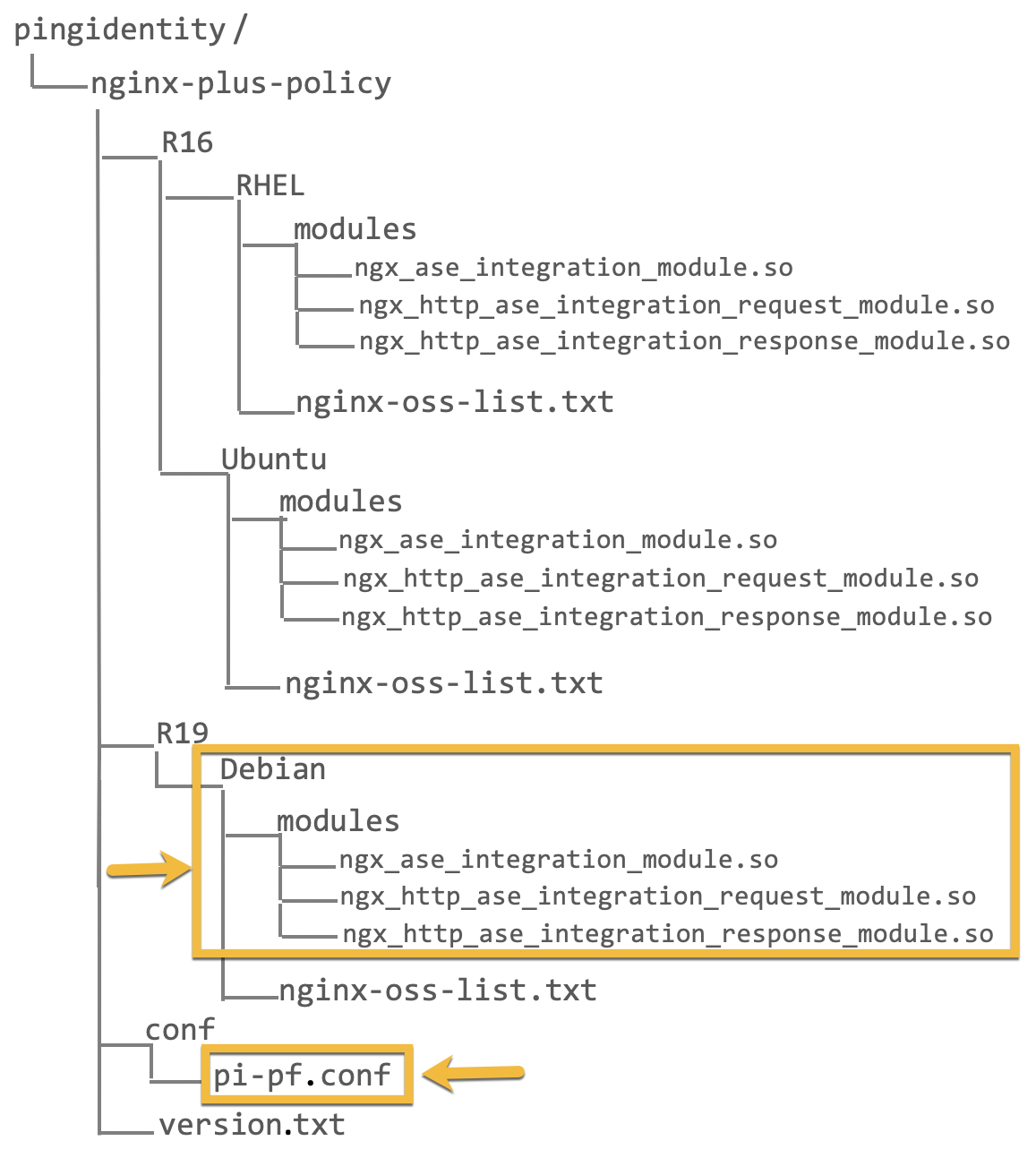

    The following is the directory structure.

    tfs1602326556783

  4. Copy the three PingIntelligence modules files for Debian to the /etc/nginx/modules/ directory of NGINX Plus andpi-pf.conf file to/etc/nginx/ directory. The pi-pf.conf file has the OAuth policy details.

    # cp ngx_ase_integration_module.so /etc/nginx/modules/
    # cp ngx_http_ase_integration_request_module.so /etc/nginx/modules/
    # cp ngx_http_ase_integration_response_module.so /etc/nginx/modules/
    # cp pi-pf.conf /etc/nginx/
  5. Change to root user:

    # sudo su
  6. Export client credentials as environment variables:

    # export PF_ID=<ID>
    # export PF_SECRET=<SECRET>

    Here PF_ID and PF_SECRET are PingFederate client ID and secret.

Configure nginx.conf file

Complete the following steps to configure nginx.conf for PingIntelligence. Make sure that the PingIntelligence module and other configurations are added at the correct place in nginx.conf as shown in the sample file at the end of the section.

  1. Load PingIntelligence modules: Edit the nginx.conf file to load the PingIntelligence modules. Following is a snippet of nginx.conf file showing the loaded PingIntelligence modules:

    worker_processes  4;

    error_log  /etc/nginx/logs/error.log debug;
    worker_rlimit_core  500M;
    working_directory  /etc/nginx;

    pid        /etc/nginx/pid/nginx.pid;
    env PF_ID;
    env PF_SECRET;

    load_module modules/ngx_ase_integration_module.so; load_module modules/ngx_http_ase_integration_request_module.so; load_module modules/ngx_http_ase_integration_response_module.so; load_module modules/ndk_http_module.so; load_module modules/ngx_http_lua_module.so;

    events {
        worker_connections  1024;
    }
     truncated nginx.conf file
  2. Configure ASE primary and secondary node: Configure ASE primary and secondary node IP address by replacing IP:PORT in the nginx.conf file snippet show below:

    http {

        keepalive_timeout  65;
        upstream test.ase.pi {
           server  IP:PORT  max_fails=1 max_conns=100 fail_timeout=10;
           server  IP:PORT  max_fails=1 max_conns=100 fail_timeout=10 backup;
           keepalive 32;
           #keepalive_timeout 3600s; # NOT allowed < 1.15.3
       }

    truncated nginx.conf file
  3. Configure introspect server IP address: Configure introspect server IP address by replacing IP:PORT in the nginx.conf file snippet show below:

    upstream introspect_server {
            server  IP:PORT  max_fails=1 max_conns=100 fail_timeout=10;
            server  IP:PORT  max_fails=1 max_conns=100 fail_timeout=10 backup;
            keepalive 32;
        }

    truncated nginx.conf file
  4. Configure username and client ID key: Configure the username and client ID keys in nginx.conf. These are the keys for username and client ID that you have configured in PingFederate.

    set $oauth_username_key  Username;
    set $oauth_client_id_key  ClientID;

    truncated nginx.conf file
  5. Configure token parameter name: Configure the token parameter name after $arg_ and in ase/request:

    # Set the token parameter name below after $arg_ and inside /ase/request.
        set $oauth_key_param $arg_access_token;
        set $oauth_token_param $arg_access_token;
    	#ASE Request Proxy Configuration
           location = /ase/request {
           internal;
           ase_integration https://test.ase.pi;
           ase_integration_method "POST";
           ase_integration_http_version 1.1;
           ase_integration_ase_token $ase_token;
           ase_integration_correlation_id $correlationid;
           ase_integration_host $ase_host;
           # set token key here.
           ase_integration_token_key  access_token;
           ase_integration_ssl_trusted_certificate $certificate;
           ase_integration_ssl_verify    off;
           ase_integration_ssl_verify_depth 1;
           ase_integration_ssl_server_name off;
           ase_integration_ssl_name $ase_ssl_host;
           ase_integration_next_upstream error timeout non_idempotent;
        }

    truncated nginx.conf file
  6. Configure introspection URL: Configure the URL of the introspection server:

    # Set introspection URL
        set $oauth_url https://introspect_server/as/introspect.oauth2;

    truncated nginx.conf file
  7. Configure ASE Sideband token: The sideband authentication token was created as part of thePrerequisites in the PingIntelligence section. Following snippet in step-8 shows the certificate location and sideband authentication token:

  8. Configure ASE request and response: Configure ASE request and response API endpoints in nginx.conf. Following snippet of nginx.conf shows ASE request and response:

     #ASE Request Proxy Configuration
        location = /ase/request {
           internal;
           ase_integration https://test.ase.pi;
           ase_integration_method "POST";
           ase_integration_http_version 1.1;
           ase_integration_ase_token $ase_token;
           ase_integration_correlation_id $correlationid;
           ase_integration_host $ase_host;
           # set token key here.
           ase_integration_token_key access_token;
           ase_integration_ssl_trusted_certificate $certificate;
           ase_integration_ssl_verify    off;
           ase_integration_ssl_verify_depth 1;
           ase_integration_ssl_server_name off;
           ase_integration_ssl_name $ase_ssl_host;
           ase_integration_next_upstream error timeout non_idempotent;
        }
        #ASE Response Proxy Configuration
        location = /ase/response {
           internal;
           ase_integration https://test.ase.pi;
           ase_integration_method "POST";
           ase_integration_http_version 1.1;
           ase_integration_ase_token $ase_token;
           ase_integration_correlation_id $correlationid;
           ase_integration_host $ase_host;
           ase_integration_ssl_trusted_certificate $certificate;
           ase_integration_ssl_verify    off;
           ase_integration_ssl_verify_depth 1;
           ase_integration_ssl_server_name off;
           ase_integration_ssl_name $ase_ssl_host;
           ase_integration_next_upstream error timeout non_idempotent;
        }

    truncated nginx.conf file
  9. Apply PingIntelligence policy: You can apply PingIntelligence policy at the global level, that is, for all the APIs in your environment or for an individual API.

    If the authorization header in the request has multiple tokens, the PingIntelligence policy extracts only the first valid bearer token from the authorization header.
    • Apply PingIntelligence policy globally: To apply PingIntelligence policy globally, add ase_integration_request and ase_integration_response in the server section of nginx.conf file as shown below:

      server {
          listen              4443 ssl bind;
          server_name         localhost;
          ssl_certificate     /etc/nginx/ssl/cert.pem;
          ssl_certificate_key /etc/nginx/ssl/key.pem;
          ssl_password_file   /etc/nginx/ssl/password_file;
          ssl_protocols       TLSv1.2;
          ssl_ciphers         HIGH:!aNULL:!MD5;
          resolver 8.8.8.8 ipv6=off;
           ase_integration_request; ase_integration_response;

          # Set OAuth Client details
       truncated nginx.conf file
    • Apply PingIntelligence policy for a specific API: Apply PingIntelligence modules for specific APIs by configuring location in nginx.conf. ase_integration_request should be the first and ase_integration_response should be the last, as shown in the following snippet.

      When applying the policy to a specific API, comment-out the ase_integration_request and ase_integration_response, that are configured in the server section of the nginx.conf file to apply PingIntelligence policy globally.

      location / {
             include /etc/nginx/pi-pf.conf;
             ase_integration_request;
             proxy_pass http://localhost:8080/;
             ase_integration_response;
      }

      truncated nginx.conf file
  10. Verify syntactical correctness of nginx.conf: To verify the syntactical correctness of nginx.conf, run the following command:

    # /usr/sbin/nginx -t
    nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
    nginx: configuration file /etc/nginx/nginx.conf test is successful

Final configuration steps

Complete the following steps to configure PingIntelligence policy for NGINX Plus:

  1. Restart NGINX by entering the following command:

    # /usr/sbin/nginx -s stop
    # /usr/sbin/nginx
  2. Run the following command to verify if --with-compat and --with-http_ssl_module is in the list of flags under configured arguments.

    # sudo /usr/sbin/nginx -V
    nginx version: nginx/1.17.3 (nginx-plus-r19)
    built by gcc 6.3.0 20170516 (Debian 6.3.0-18+deb9u1)
    built with OpenSSL 1.1.0j 20 Nov 2018 (running with OpenSSL 1.1.0l 10 Sep 2019)
    TLS SNI support enabled
  3. Verify that NGINX has restarted by entering the following command:

    # netstat -tulpn | grep 4443

Following is a sample nginx.conf file:

worker_processes  4;

error_log  /etc/nginx/logs/error.log debug;
worker_rlimit_core  500M;
working_directory  /etc/nginx;

pid        /etc/nginx/pid/nginx.pid;
env PF_ID;
env PF_SECRET;

load_module modules/ngx_ase_integration_module.so;
load_module modules/ngx_http_ase_integration_request_module.so;
load_module modules/ngx_http_ase_integration_response_module.so;
load_module modules/ndk_http_module.so;
load_module modules/ngx_http_lua_module.so;

events {
    worker_connections  1024;
}

http {

    keepalive_timeout  65;
    upstream test.ase.pi {
       server IP:PORT max_fails=1 max_conns=100 fail_timeout=10;
       server IP:PORT max_fails=1 max_conns=100 fail_timeout=10 backup;
       keepalive 32;
#      keepalive_timeout 3600s; # NOT allowed < 1.15.3
   }

    upstream introspect_server {
        server IP:PORT max_fails=1 max_conns=100 fail_timeout=10;
        server IP:PORT max_fails=1 max_conns=100 fail_timeout=10 backup;
        keepalive 32;
    }

    lua_shared_dict cache_dict 128m;

server {
    listen              4443 ssl bind;
    server_name         localhost;
    ssl_certificate     /etc/nginx/ssl/cert.pem;
    ssl_certificate_key /etc/nginx/ssl/key.pem;
    ssl_password_file   /etc/nginx/ssl/password_file;
    ssl_protocols       TLSv1.2;
    ssl_ciphers         HIGH:!aNULL:!MD5;
    resolver 8.8.8.8 ipv6=off;
    ase_integration_request;
    ase_integration_response;

    # Set OAuth Client details

    # Set env variable PF_ID &PF_SECRET
    set_by_lua $client_id 'return os.getenv("PF_ID")';
    set_by_lua $client_secret 'return os.getenv("PF_SECRET")';

    # Uncomment next 2 lines to set client credentials here.
    # set $client_id nginx_client;
    # set $client_secret nginx_secret;

    set $oauth_username_key Username;
    set $oauth_client_id_key ClientID;

    # Set the token parameter name below after $arg_ and inside /ase/request.
    set $oauth_key_param $arg_access_token;
    set $oauth_token_param $arg_access_token;

    # Set cache lifetime, default is 120s.
    set $oauth_cache_timeout 120;

    # Set introspection URL
    set $oauth_url https://introspect_server/as/introspect.oauth2;

    location /introspect {
        internal;
        proxy_method    POST;
        if ($arg_auth_token) {
            set $auth_token $arg_auth_token;
        }
        if ($http_authorization ~* .*?(bearer)(\s+)([-a-zA-Z0-9._~+/]+)(,|\s|$)) {
            set $auth_token $3;
        }
        proxy_set_header  Content-Type "application/x-www-form-urlencoded";
        proxy_set_body  "client_id=${client_id}&client_secret=${client_secret}&token=${auth_token}";
        proxy_pass_request_body off;
        proxy_http_version 1.1;
        proxy_set_header Connection "";
        proxy_pass      $oauth_url;
    }

    location /shop {
       include /etc/nginx/pi-pf.conf;
       proxy_pass http://18.209.173.37:4100/shop;

    }
    #DO NOT EDIT BELOW VARIABLE
    set $correlationid $pid-$request_id-$server_addr-$remote_addr-$remote_port-$request_length-$connection;
    #Certificate location of ASE
    set $certificate /etc/nginx/ssl/test.ase.pi;
    #ASE Token for sideband authentication
    set $ase_token <ASE_TOKEN>;
    #Host header which should be send to ASE
    set $ase_host test.ase.pi;
    #SNI value to use for ASE
    set $ase_ssl_host test.ase.pi;
    #ASE Request Proxy Configuration
    location = /ase/request {
       internal;
       ase_integration https://test.ase.pi;
       ase_integration_method "POST";
       ase_integration_http_version 1.1;
       ase_integration_ase_token $ase_token;
       ase_integration_correlation_id $correlationid;
       ase_integration_host $ase_host;
       # set token key here.
       ase_integration_token_key access_token;
       ase_integration_ssl_trusted_certificate $certificate;
       ase_integration_ssl_verify    off;
       ase_integration_ssl_verify_depth 1;
       ase_integration_ssl_server_name off;
       ase_integration_ssl_name $ase_ssl_host;
       ase_integration_next_upstream error timeout non_idempotent;
    }
    #ASE Response Proxy Configuration
    location = /ase/response {
       internal;
       ase_integration https://test.ase.pi;
       ase_integration_method "POST";
       ase_integration_http_version 1.1;
       ase_integration_ase_token $ase_token;
       ase_integration_correlation_id $correlationid;
       ase_integration_host $ase_host;
       ase_integration_ssl_trusted_certificate $certificate;
       ase_integration_ssl_verify    off;
       ase_integration_ssl_verify_depth 1;
       ase_integration_ssl_server_name off;
       ase_integration_ssl_name $ase_ssl_host;
       ase_integration_next_upstream error timeout non_idempotent;
    }
}

}
