PingIntelligence

Capture client identifiers - Sideband

ASE identifies attackers for HTTP(s) protocol using five client identifiers:

  • Username

  • API keys

  • OAuth2 token

  • Cookie

  • IP address

ASE supports the extraction of usernames coming in a JSON Web Tokens( JWTs) or custom headers. For more information, see Extract user information from JWT in sideband mode and Extract username from custom header in sideband mode. ASE can also receive Usernames from a gateway policy, when ASE is deployed in a sideband mode. The PingIntelligence ABS AI engine identifies them based on metadata logged in ASE’s access log files.

The following sections describe how to configure ASE to capture OAuth2 Tokens and API keys.

Configure ASE support for OAuth2 tokens

ASE supports capturing and blocking of OAuth2 tokens. To enable OAuth2 token capture, set the value of oauth2_access_token to true in the API JSON file. Here is a snippet of an API JSON file with OAuth2 token capture activated. To disable, change the value to false.

"api_metadata": {
	 "protocol": "http",
	 "url": "/",
	 "hostname": "*",
	 "cookie": "",
				"cookie_idle_timeout": "200m",
				"logout_api_enabled": false,
				"cookie_persistence_enabled": true,
				"oauth2_access_token": true,
				"is_token_mandatory": false,
				"apikey_qs": "",
				"apikey_header": "",
				"login_url": "",
				"enable_blocking": true,
				"api_mapping": {
				"internal_url": ""
				},

When enable_blocking is true, ASE checks the token against the list of tokens in the whitelist and blacklist. If the token is in the blacklist, the client using the token is immediately blocked. Further, when is_token_mandatory is set totrue, and the incoming request has a missing token, ASE adds the IP address of the client to blacklist and blocks the request.

For ASE to check and block the client, enable_firewall and enable_ase_detected_attack must be set to true in Sideband ASE configuration using the ase.conf file.

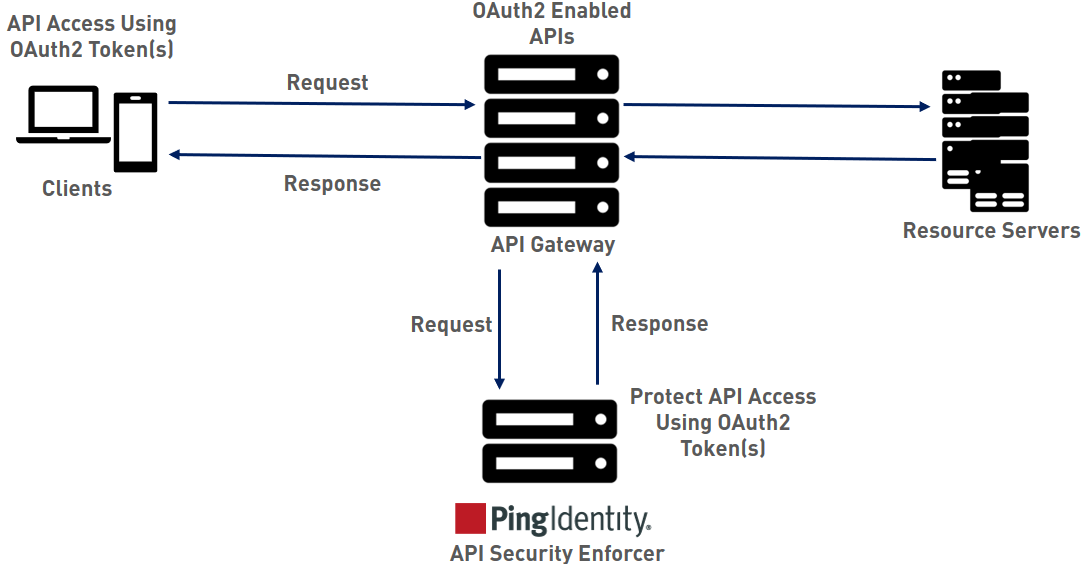

The following diagram shows the traffic flow in an OAuth2 environment.

dsk1564009016418

Configure ASE support for API keys

ASE supports capturing and blocking of API keys. Depending on the API setup, the API key can be captured from the query string or API header. Each API JSON file can be configured with either the query string (apikey_qs) or API header (apikey_header) parameter.

Here is a snippet of an API JSON file showing API key being configured to capture the API key from the Query String (apikey_qs).

"api_metadata": {
				"protocol": "http",
				"url": "/",
				"hostname": "*",
				"cookie": "",
				"cookie_idle_timeout": "200m",
				"logout_api_enabled": false,
				"cookie_persistence_enabled": true,
				"oauth2_access_token": true,
				"is_token_mandatory": false,
				"apikey_qs": "key_1.4",
				"apikey_header": "",
				"login_url": "",
				"enable_blocking": true,
				"api_mapping": {
				"internal_url": ""
				},

When an API key is included in the API JSON file, ASE supports blocking of API keys which are manually added to the blacklist.
