App Policy Decision node

The App Policy Decision node is a specialized version of the Policy Decision node designed to simplify the evaluation of application access policies within a journey.

For example, use the node to restrict access based on user attributes, such as ensuring only end users in a specific finance group can access a finance portal.

You don’t need to configure the node because it automatically identifies the policy set and resource from the journey context. However, the node assumes the following prerequisites:

The node is used within an OAuth 2.0/OIDC or SAML application journey.
The application ID (OAuth 2.0 client ID or SP entity ID) is specified as the resource when the journey is invoked.
A policy with that resource is defined within the Customer Application Policy Set.

The outcome of the policy evaluation, to accept or reject access, map to the node’s outcomes. It doesn’t handle advices or environment conditions.

Example

This example uses an App Policy Decision node to manage access to a finance portal application based on usernames.

Prerequisites

The following setup is assumed:

Standalone AM
Ping Identity Platform deployments

A test end user.
An OAuth 2.0 provider service with default settings.
A public OAuth 2.0 client, with the following settings:

Client ID

finance-app

Scope(s)

openid

Tree Name

example journey
A policy that allows access based on a username. It must be defined in the Customer Application Policy Set.

Resources

finance-app

Actions

ACCESS:Allowed

Subjects

Type

OpenID Connect/JWT Claim

Claim Name

sub

Claim Value

username

Example policy

Learn about configuring policies in Policies in the UI.

A test end user, added to the Finance group.
An OIDC application, with the following settings:

Client ID

finance-app

Use a journey to authenticate users to this application

example journey

A policy that allows access to an end user in the Finance group.

Resources

finance-app

Actions

ACCESS:Allowed

Subjects

{
  "type": "NOT",
  "subject": {
    "type": "NONE"
  }
}

Environments

{
  "type": "OR",
  "conditions": [
    {
      "type": "IdmUser"
      "identityResource": "managed/alpha_user",
      "queryField": "/_id",
      "decisionField": "/effectiveGroups/*/_refResourceId",
      "comparator": "EQUALS",
      "value": "Finance"
     }
  ]
}

How to create this policy

Go to Native Consoles > Access Management, go to Realms > Realm Name > Authorization > Policy Sets.
Click Customer Application Policy Set to add a policy.

You must use this policy set for app authorization.
Click + Add a Policy.
Provide a name and select Authentication as the resource type.
Select * as the resource pattern and add the client application ID, finance-app, as the resource.
Click Create.
Add an action of type Access and save your changes.
Add a subject condition of type Never Match in a Not logical block and save your changes.
Add an environmental condition:
1. Click Add an Environment Condition, select IDM User, and add the following values:

  Identity Resource

  managed/alpha_user

  Query Field

  /_id

  Decision Field

  /effectiveGroups/*/_refResourceId

  Comparator

  Equal to

  Value

  Finance
2. Click the checkmark () button to finish.
3. Click Add a Logical Operator, select Any of.., and move the enviromment condition into the logical block.
4. Save your changes.

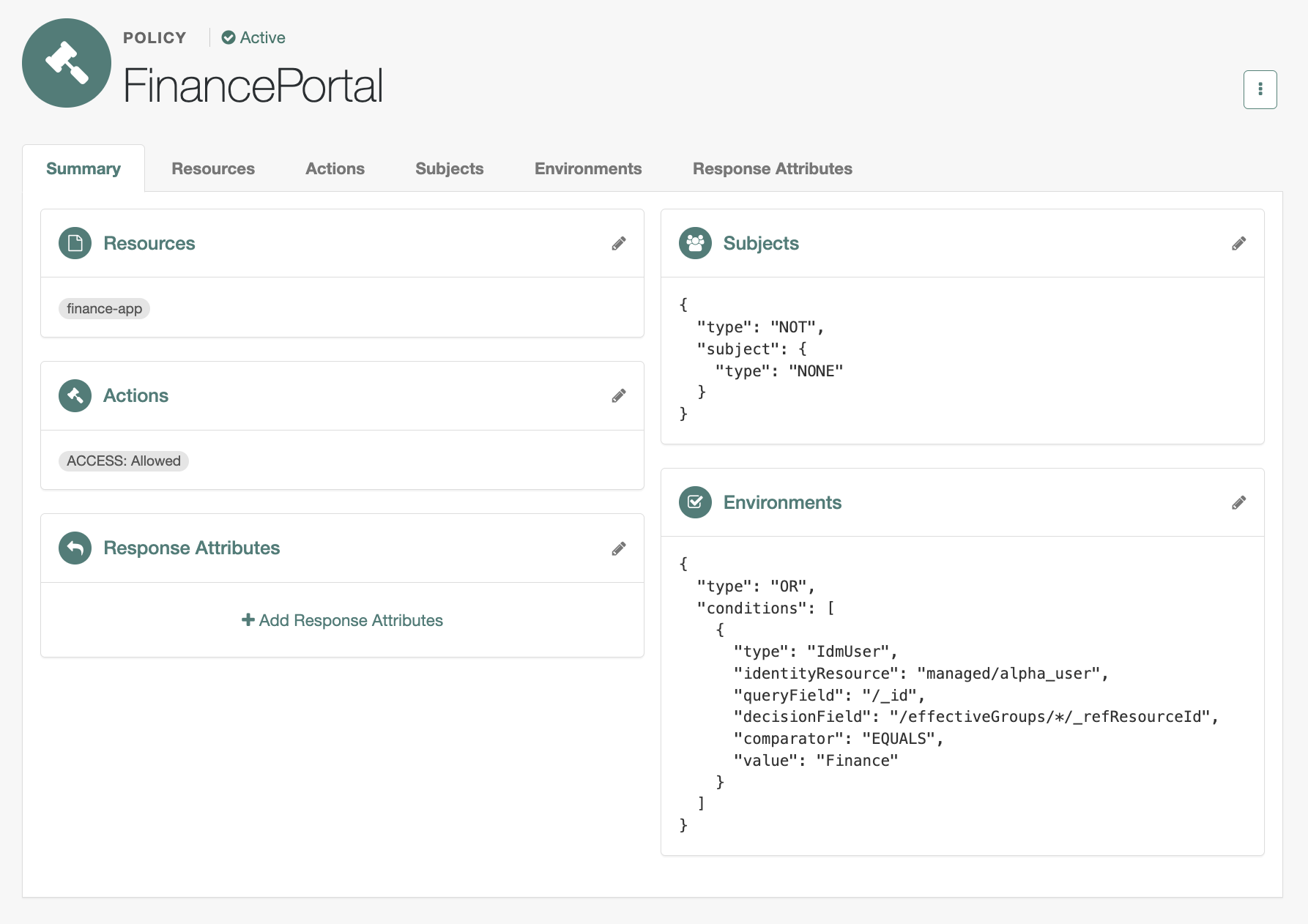

Verify that the policy summary looks like this:

Learn about configuring policies in Policies in the UI.

Example journey

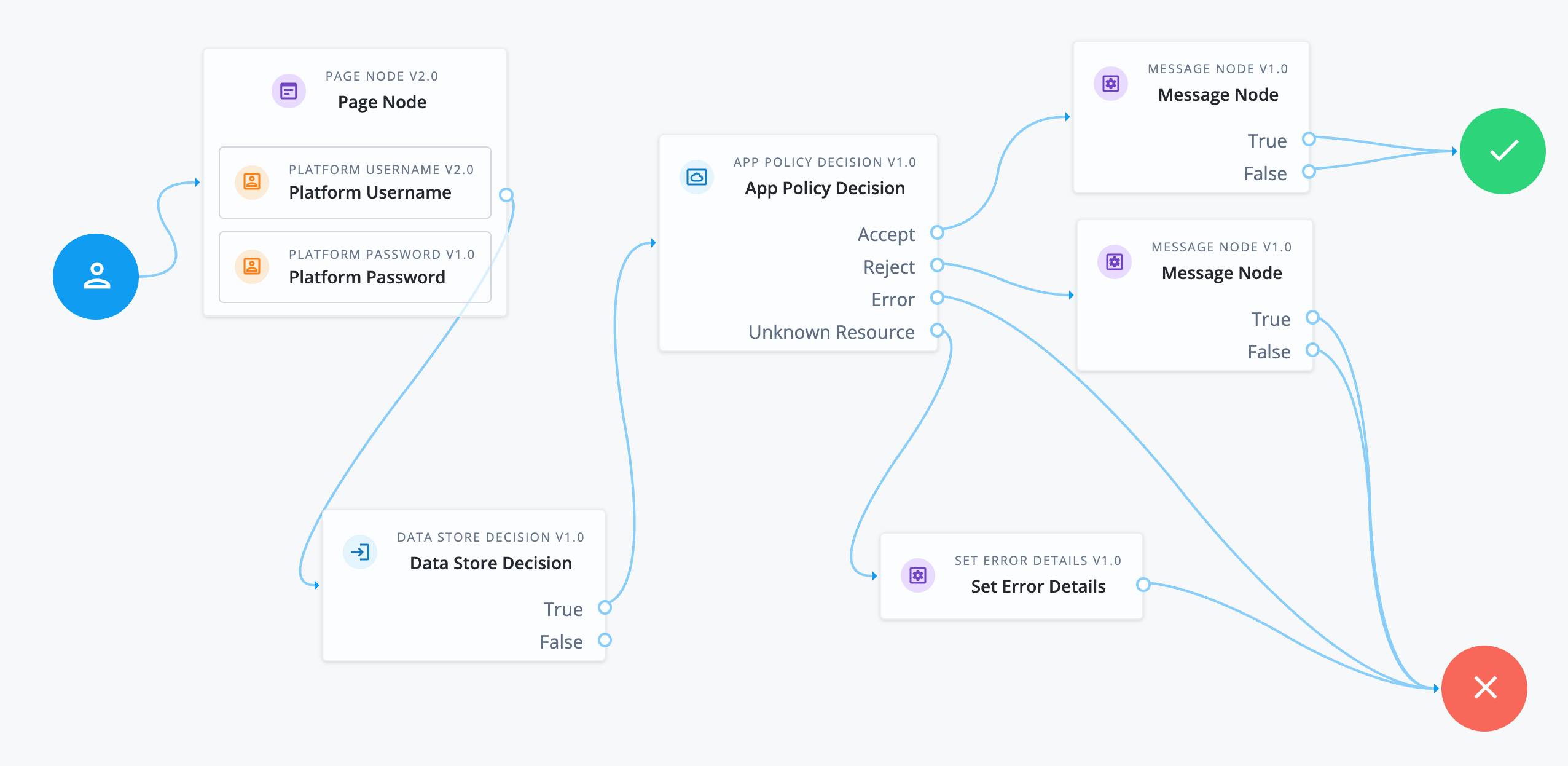

Policy Decision node in an app authorization flow

The authorization journey is invoked specifying the OAuth 2.0 client ID as the resource, for example:

https://am.example.com:8443/am/oauth2/alpha/authorize?client_id=finance-app&redirectUri=http://www.example.com/signin&scope=openid&response_type=code

The Page node containing the Platform Username node and Platform Password node prompts for credentials.
The Data Store Decision node validates the username-password credentials.
A successful authentication routes the journey to the App Policy Decision node.

The node has no configuration, but relies on the journey context and prerequisite configuration to identify the OAuth 2.0 client ID resource (finance-app). It can then locate the access policy to evaluate whether the end user is an authorized user for the finance app.
The outcome of the policy evaluation determines the path of the journey:

Accept

The policy grants access. The Message node informs the end user they’re authorized and the journey is successful.

Reject

The policy rejects access. The Message node informs the end user they’re not authorized.

Error

An error in policy evaluation leads to the failure outcome.

Unknown Resource

The node failed to identify the resource and the journey continues to the Set Error Details node.

Inputs

If policy evaluation requires a subject, make sure the username is collected earlier in the journey.

Dependencies

This node requires the following configuration:

An application (OAuth 2.0 client or SAML SP entity) that uses a journey with an App Policy Decision node
The Customer Application Policy Set must have a policy with the client or entity ID set as the resource.

Configuration

This node has no configurable properties.

Outputs

This node doesn’t change the shared state.

Callbacks

This node doesn’t send any callbacks.

Outcomes

Accept: Policy evaluation succeeded.
Reject: Policy evaluation didn’t succeed.
Error: If an error occurs during policy evaluation.
Unknown Resource: If the node failed to identify the OAuth 2.0 or SAML 2.0 resource.

Errors

The node logs an error if policy evaluation fails.
