AD Decision node

RAPID only

The AD Decision node verifies that the provided username and password exist in the specified Active Directory data store. The node also checks whether the user account is locked, disabled, or has expired.

The node is similar to the LDAP Decision node except for the following differences:

  • It doesn’t support the LDAP Behera password policy.

  • It can return a specific outcome for an expired account in addition to an expired password.

  • It makes a distinction between a disabled account and a locked account.

Example

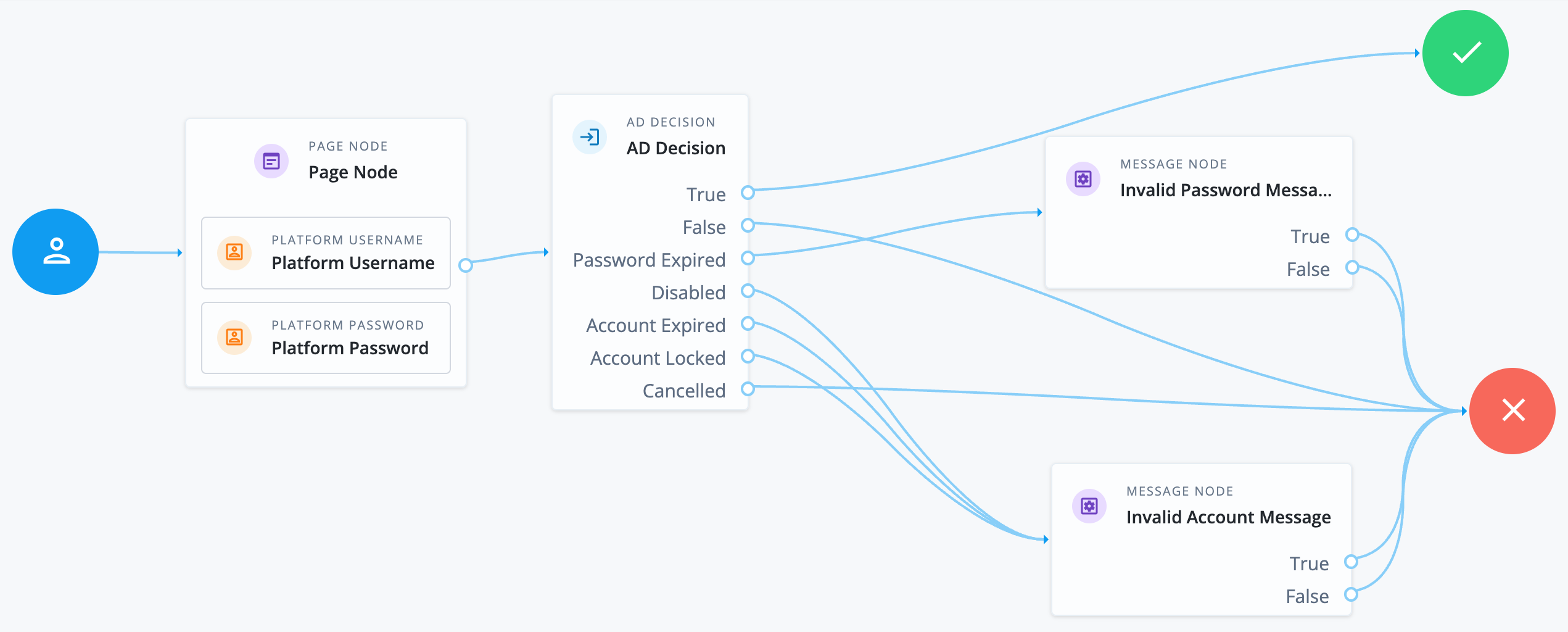

The following example journey collects the user credentials and checks them against the AD data store:

  • If they match, the journey continues to the success outcome.

  • If the password has expired, the journey ends in failure with a custom message node to inform the user.

  • If the account is locked, disabled, or has expired, the journey ends in failure with an invalid account message.

Example journey showing AD Decision node

Availability

Product Available?

PingOne Advanced Identity Cloud

Yes

PingAM (self-managed)

Yes

Ping Identity Platform (self-managed)

Yes

Inputs

The node reads the username and password fields from node state.

Implement a Platform Username node and a Platform Password node earlier in the journey.

Alternatively, implement a Zero Page Login Collector node.

Dependencies

None.

Configuration

Property Usage

Primary LDAP Server (required)

Specify one or more primary directory servers. Specify each directory server in the following format: host:port.

For example, ad.example.com:389.

Secondary LDAP Server

Specify one or more secondary directory servers. Specify each directory server in the following format: host:port.

The journey uses the secondary servers when none of the primary servers are available.

For example, ad_backup.example.com:389.

DN to Start User Search (required)

Specify the DN from which to start the user search. More specific DNs, such as ou=sales,dc=example,dc=com, result in better search performance.

If multiple entries with the same attribute values exist in the directory server, make sure this property is specific enough to return only one entry.

Bind User DN, Bind User Password

The credentials used to connect to the directory server.

Attribute Used to Retrieve User Profile (required)

The attribute used to retrieve a user profile from the directory server.

The user search will have already happened, as specified by the Attributes Used to Search for a User to be Authenticated and User Search Filter properties.

Attributes Used to Search for a User to be Authenticated (required)

The attributes the node uses to match the credentials provided by the user to an entry in the directory server.

For example, a value of uid forms the search filter uid=user. If you specify multiple values, such as uid and cn, the node forms a complex search filter (|(uid=user)(cn=user)).

Multiple attribute values let the user authenticate with any one of the values. For example, if you set both uid and mail, then Barbara Jensen can authenticate with either bjensen or bjensen@example.com.

If you’re using account lockout and you set multiple attribute values here, you must add those attributes to the Alias Search Attribute Name property in the User profile. Find more information about this property in Core authentication attributes > User profile.

User Search Filter

A filter to append to user searches.

For example, if your search attribute is mail and you set User Search Filter to (objectClass=inetOrgPerson), the node uses (&(mail=address)(objectClass=inetOrgPerson)) as the resulting search filter. In this example, address is the mail address provided by the user.

Search Scope

The extent of the search for users in the directory server:

  • OBJECT: The search extends only to the entry specified by the DN to Start User Search.

  • ONELEVEL: The search extends to the entries that are direct children of the DN to Start User Search.

  • SUBTREE: The search extends to the DN to Start User Search and every entry under it.

Default: SUBTREE

LDAP Connection Mode

Whether to use SSL or StartTLS to connect to the directory server. The node must be able to trust the certificates used.

Possible values: LDAP, LDAPS, and StartTLS

Default: LDAP

mTLS Enabled

Enables mTLS (mutual TLS) between Advanced Identity Cloud and the directory server.

This setting applies to all configured LDAP servers; that is, Advanced Identity Cloud uses mTLS to authenticate to all LDAP servers configured for this node.

When mTLS is enabled, Advanced Identity Cloud ignores the values for Bind User DN and Bind User Password.

If you enable this property, you must:

  • Set the LDAP Connection Mode to LDAPS

  • Provide an mTLS Secret Label Identifier

Learn about mapping secrets in Map and rotate secrets.

Default: Not enabled

mTLS Secret Label Identifier

Identifier used to create a secret label for mapping to the mTLS certificate in the secret store. Advanced Identity Cloud uses this identifier to create a specific secret label for this node. The secret label takes the form am.authentication.nodes.ldap.decision.mtls.identifier.cert , where identifier is the value of mTLS Secret Label Identifier. The identifier can only contain alphanumeric characters (a-z, A-Z, 0-9) and periods (.). It can’t start or end with a period. All LDAP servers configured for this node share the same secret label.

For more security, you should rotate certificates periodically. When you rotate a certificate, update the corresponding mapping in the realm secret store configuration to reflect this label. When you rotate a certificate, Advanced Identity Cloud closes any existing connections using the old certificate. A new connection is selected from the connection pool and no server restart is required.

Return Account Locked Message

If enabled, the node returns a specific Account locked message for locked accounts. Otherwise, it returns a generic Login failure message to hide the account’s locked status.

Default: Not enabled

Return User DN to DataStore

When enabled, the node returns the DN rather than the User ID. From the DN value, Advanced Identity Cloud uses the RDN to search for the user profile. For example, if a returned DN value is uid=demo,ou=people,dc=example,dc=com, Advanced Identity Cloud uses uid=demo to search the directory server.

Default: Enabled

User Creation Attributes

This list lets you map (external) attribute names from the LDAP directory server to (internal) attribute names used by Advanced Identity Cloud.

Minimum Password Length

The minimum acceptable password length.

Default: 8

Trust All Server Certificates

When enabled, the server blindly trusts server certificates, including self-signed test certificates.

Default: Not enabled

LDAP Connection Heartbeat Interval

Specifies how often Advanced Identity Cloud should send a heartbeat request to the directory server to ensure that the connection doesn’t remain idle.

Some network administrators configure firewalls and load balancers to drop connections that are idle for too long. Set the units for the interval in the LDAP Connection Heartbeat Time Unit property.

Setting this property to 0 does not disable the heartbeat (keepalive) or load balancer availability checks.

Default: 10

LDAP Connection Heartbeat Time Unit

The time unit for the LDAP Connection Heartbeat Interval.

Default: seconds

LDAP Operations Timeout

The timeout, in seconds, that Advanced Identity Cloud should wait for a response from the directory server.

Default: 0 (means no timeout)

Use mixed case for password change messages

Whether the server returns password reset messages in mixed case (sentence case) or transforms them to uppercase.

By default, the server transforms password reset and password change messages to uppercase. Enable this setting to return messages in sentence case.

Default: Not enabled

LDAP Affinity Level

Level of affinity used to balance requests across directory servers.

Affinity-based load balancing means that each request for the same user entry goes to the same directory server. The directory server used for a specific operation is determined by the DN of the identity involved.

List the directory server instances that form part of the affinity deployment in the Primary LDAP Server and Secondary LDAP Server properties.

Options are:

  • NONE – no affinity

  • BIND – affinity for BIND requests only

  • ALL – affinity for all requests

Default: NONE

Outputs

If a password reset is required, the node adds a lastModuleState property with the value of changeAfterReset to shared state.

Outcomes

True

The provided credentials match those found in the AD user data store.

False

The credentials don’t match those found in the AD user data store.

Password Expired

The credentials are valid, but the password has expired. The journey doesn’t automatically initiate a password reset.

Disabled

The credentials are valid, but the user account is disabled.

Account Expired

The credentials are valid, but the user account has expired. This is different to the outcome where the password has expired.

Account Locked

The username is valid, but the user account is locked..

Cancelled

If the account requires a password reset, the journey prompts the user to change their password. The user then cancels the password reset.

Locked and disabled accounts

In AD, a locked account is a temporary, automated security measure to protect against suspicious login activity, and it often resolves itself.

In contrast, a disabled account is a deliberate, long-term administrative action to revoke access, which the administrator must reverse manually.

Feature Locked Account Disabled Account

Trigger

Automatic system action, usually from too many failed login attempts.

Manual action by an administrator or an automated de-provisioning process.

Purpose

A security measure to prevent brute-force password attacks.

An administrative action to block access, often due to employment status changes.

Duration

Temporary. It can unlock automatically after a set time.

Permanent, until it is manually re-enabled.

Resolution

The user can wait for the lockout to expire, or an admin can unlock it.

An administrator must manually re-enable the account.

The Account Lockout node performs an administrative account lockout, so be cautious when using this with the AD Decision node. If a user with such an account tries to authenticate, the AD Decision node interprets the account as disabled, not locked, which results in the Disabled outcome.

Errors

The node logs the following exceptions:

  • Invalid configuration: If AD returns an unexpected result.

  • Server error: If an error occurs connecting to AD.

  • Unknown login state: If authentication results in an unknown state.
