Authentication nodes

Device Binding Storage node

The Device Binding Storage node persists collected device binding data to a user’s profile in the identity store.

Example

The following example shows a device binding journey that registers a device to the user, checks the collected device data meets certain criteria, and stores the device data in the user’s profile:

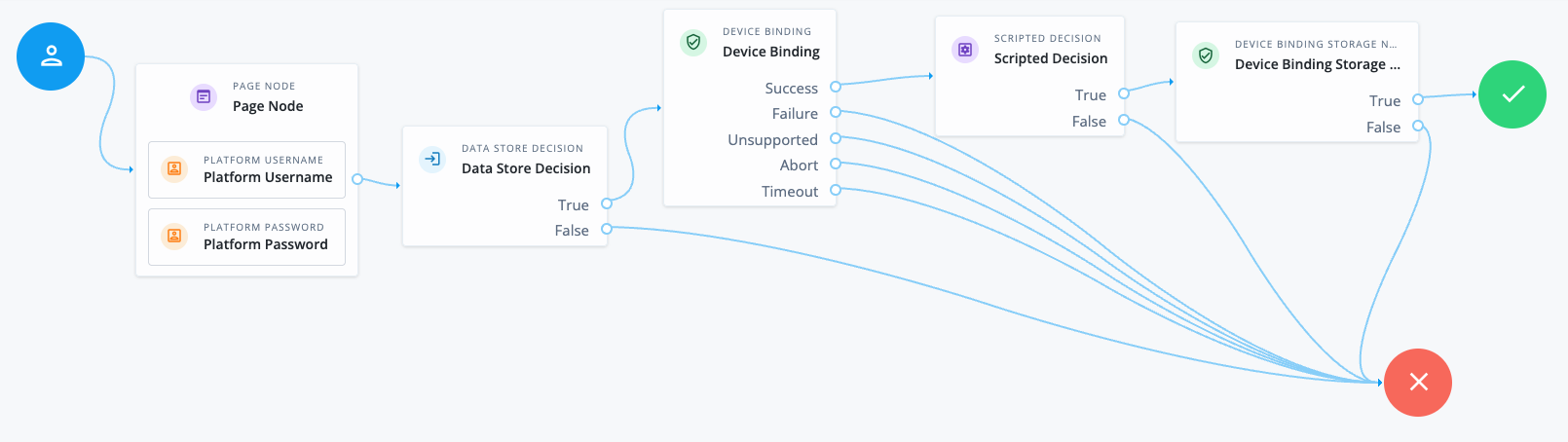

Device binding journey example

  • The Page node containing the Platform Username node and Platform Password node prompts for credentials.

  • The Data Store Decision node validates the username-password credentials.

  • The Device Binding node is configured with the Store Device Data in Transient State option enabled. The node initiates the binding process on the user’s device. When the user completes the process, the node stores the collected device data in the transient state.

  • The Scripted Decision node inspects the device data before it’s saved.

    For example, you could use this node to enforce a policy that only allows devices with certain characteristics to be registered. If the device doesn’t meet the policy, the script can route the journey to the Failure outcome path, preventing the device data from being saved.

  • The Device Binding Storage node retrieves the device data from the transient state and saves it to the user’s profile in the identity store.

If you don’t need to do anything with the device data before it’s saved, you can configure the Device Binding node to store the device data in the user’s profile. This would simplify the journey because the Device Binding Storage node wouldn’t be needed.

Availability

Product Available?

PingOne Advanced Identity Cloud

Yes

PingAM (self-managed)

Yes

Ping Identity Platform (self-managed)

Yes

Inputs

  • This node requires the realm and username properties in the incoming node state.

    Implement a Platform Username node earlier in the journey.

  • The node requires the DeviceBinding.DEVICE variable in the incoming node state.

    Implement the Device Binding node earlier in the journey.

Dependencies

None.

Configuration

This node has no configurable properties.

Callbacks

This node doesn’t send any callbacks.

Outcomes

True

Device binding data was successfully stored in the user’s profile.

False

Device binding data wasn’t stored in the user’s profile.

Errors

The node can log the following errors:

  • Device Persistence Error

    The node failed to retrieve the user’s identity.

  • Failed to convert JsonValue to DeviceBindingSettings object

    The node failed to convert the device’s JSON data into a DeviceBindingSettings object.

  • Failed to store Device Binding data

    The node can’t find the device data in the shared state. Make sure you have implemented the Device Binding node earlier in the journey.
