Authentication nodes

Policy Decision node

RAPID only

The Policy Decision node evaluates authorization in an authentication journey. Use this node to determine whether a user has access to a particular resource based on identity or environmental checks, such as group membership or the time of day.

If the policy relies on a subject for evaluation, you must ensure the user is authenticated or their identity verified before the journey runs this node. This prevents unauthorized access to policies and protects against denial of service (DoS) attacks.

A subject is identified in the following prioritized order:

  • The node uses the SSO token passed into the journey.

  • The node checks for an existing identified user, for example, through an Identify Existing User node or a Data Store Decision node earlier in the journey.

  • The node looks for the username in the node state.

Examples

The following examples demonstrate how you can use the Policy Decision node to evaluate policies that match against dynamic environment values or policies that depend on authenticated users and session properties.

Learn about configuring policies in Policies in the UI.

Evaluate a policy using a dynamic value

The following journey uses a Configuration Provider node imitating a Policy Decision node to evaluate whether the user can access a resource based on the time of day.

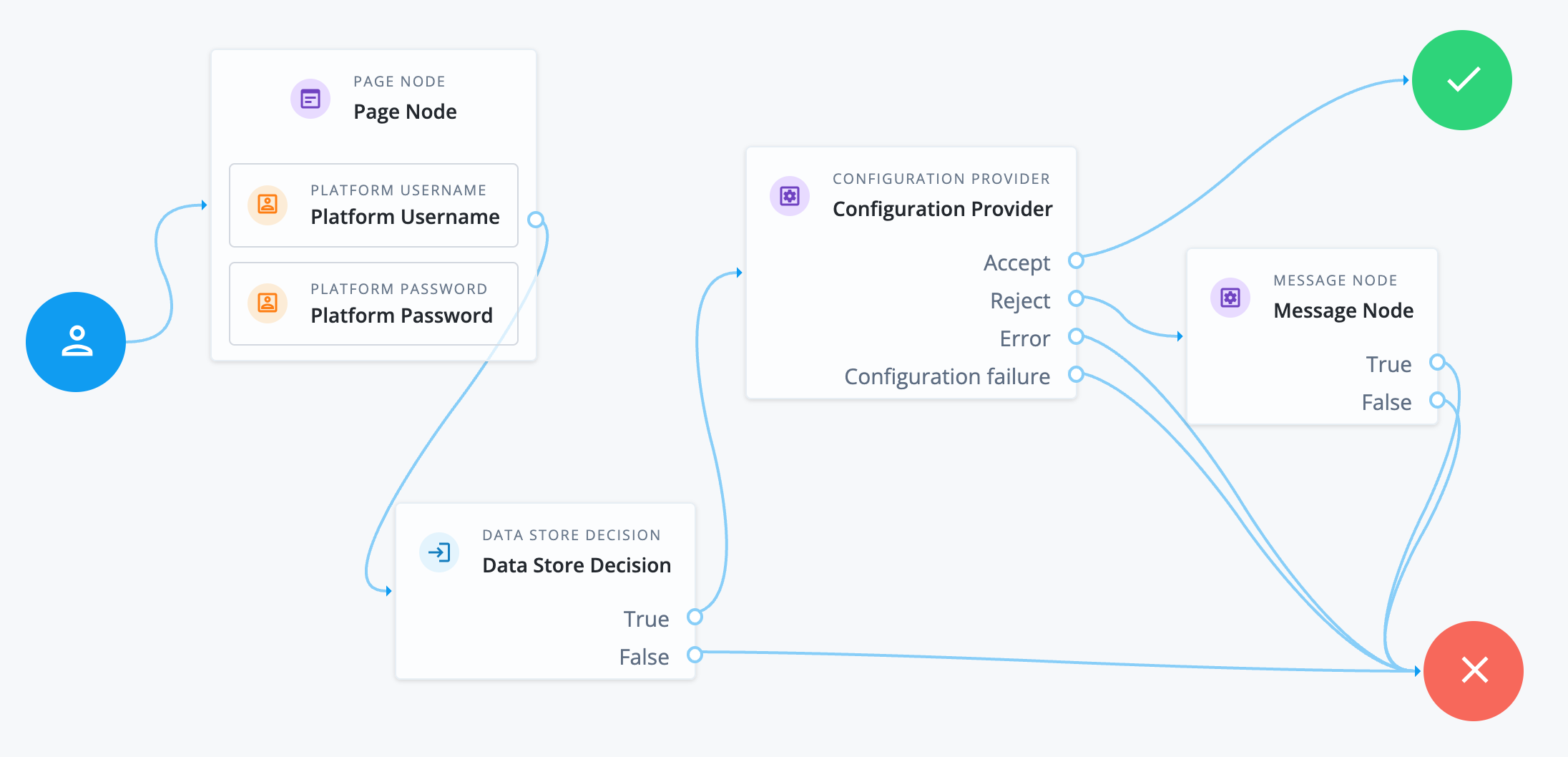

Policy Decision node in a flow that grants time-based access

  • The Page node containing the Platform Username node and Platform Password node prompts for credentials.

  • The Data Store Decision node validates the username-password credentials.

  • A successful authentication routes the journey to the Configuration Provider node.

    The node is configured with the following script:

    var currentTime = Date.now().toFixed();
config = {
  "policySet" : "myPolicySet",
  "resource" : "http://example.com:80/time",
  "action" : "GET",
  "environment" : {
    "requestTime" : currentTime,
    "requestTimeZone": "GMT"
  }
};

    The script configuration matches a policy that lets any user access the resource http://example.com:80/time if the current time is Monday to Friday, 09:00 to 17:00 GMT. In this case, the policy doesn’t use the subject. It uses an environment condition to determine access to the resource.

    For a policy to match regardless of the subject, configure a Never Match subject condition inside a logical Not block.
    Example policy

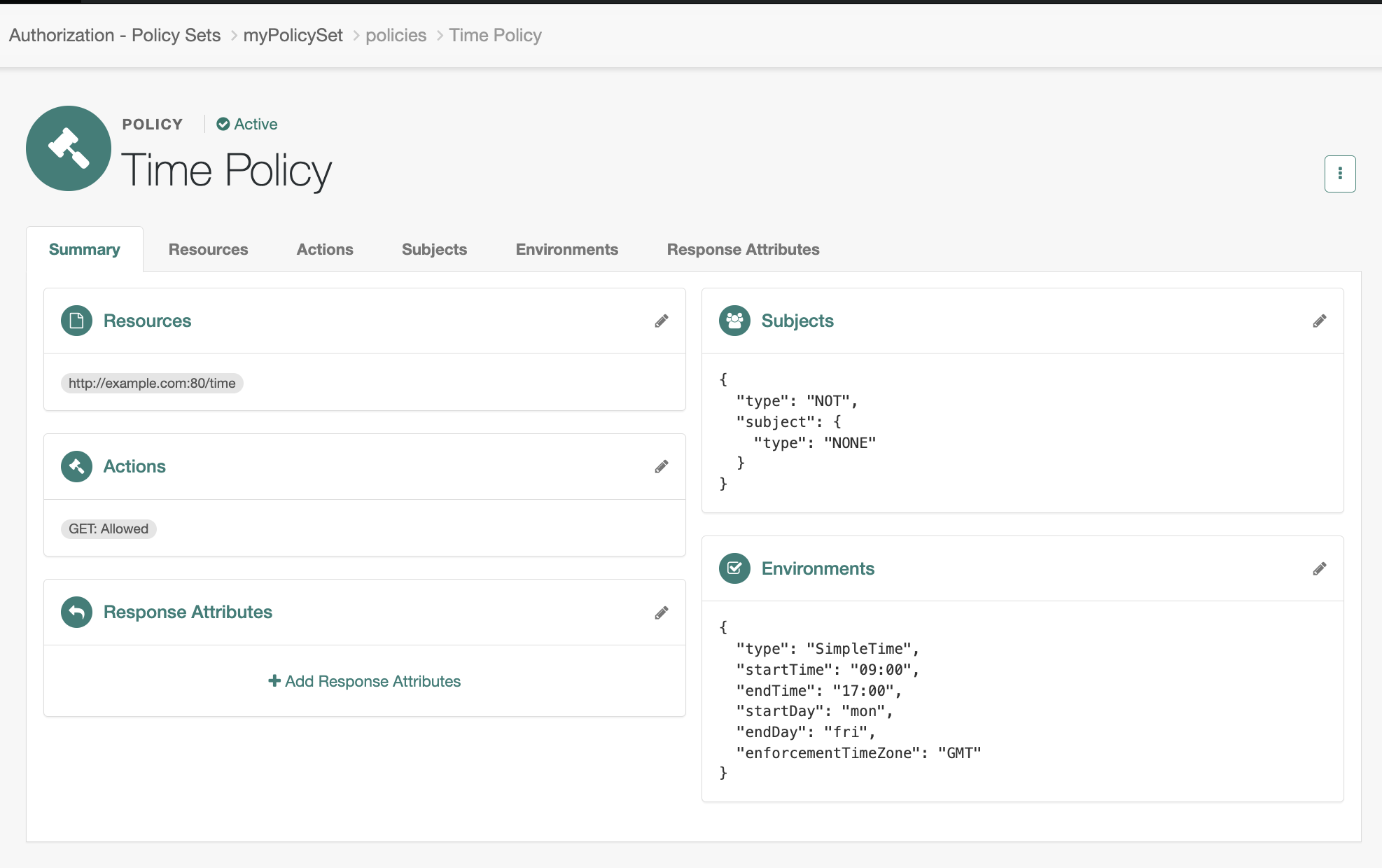

    policy node time policy

  • The outcome of the policy evaluation determines the path of the journey:

    Accept

    The policy grants access to the resource and the journey is successful.

    Reject

    The policy rejects access to the resource and the Message node informs the end user they’re not authorized.

    Error

    An error in policy evaluation leads to the failure outcome.

    Configuration failure

    An error with the Configuration Provider node script also leads to the failure outcome.

Evaluate a policy against an authentication level

The following journey uses a Policy Decision node to check whether the subject has a specific authentication level. The journey requires the subject to already have a session.

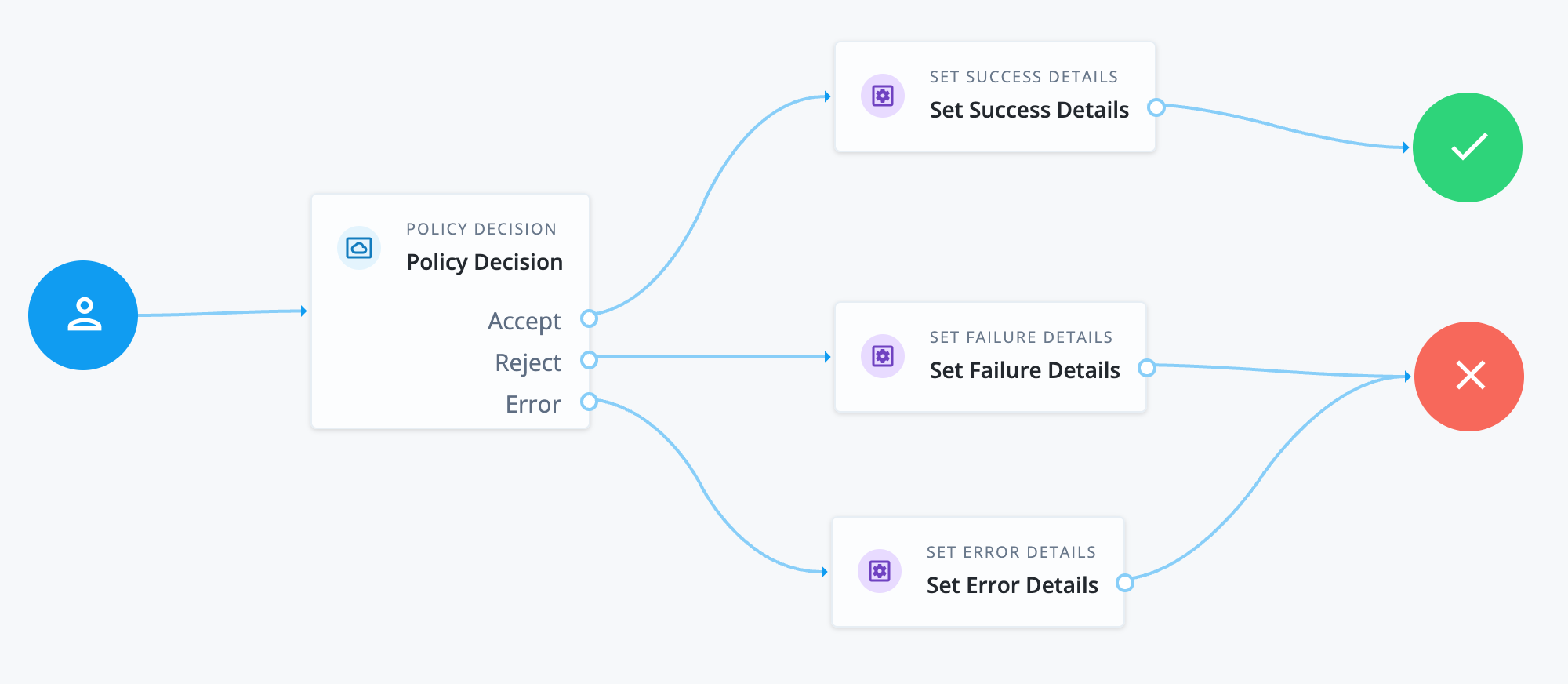

Policy Decision node in a flow that matches authenticated users

  • The journey starts with the Policy Decision node. It requires an end user with an existing session.

    The node’s configured policy set and resource matches a policy set that only grants access to authenticated users with an authentication level of 2, for example:

    Policy Set

    Example Policy Set

    Resource

    http://example.com:80/authlevel

    Action

    GET

    Example policy

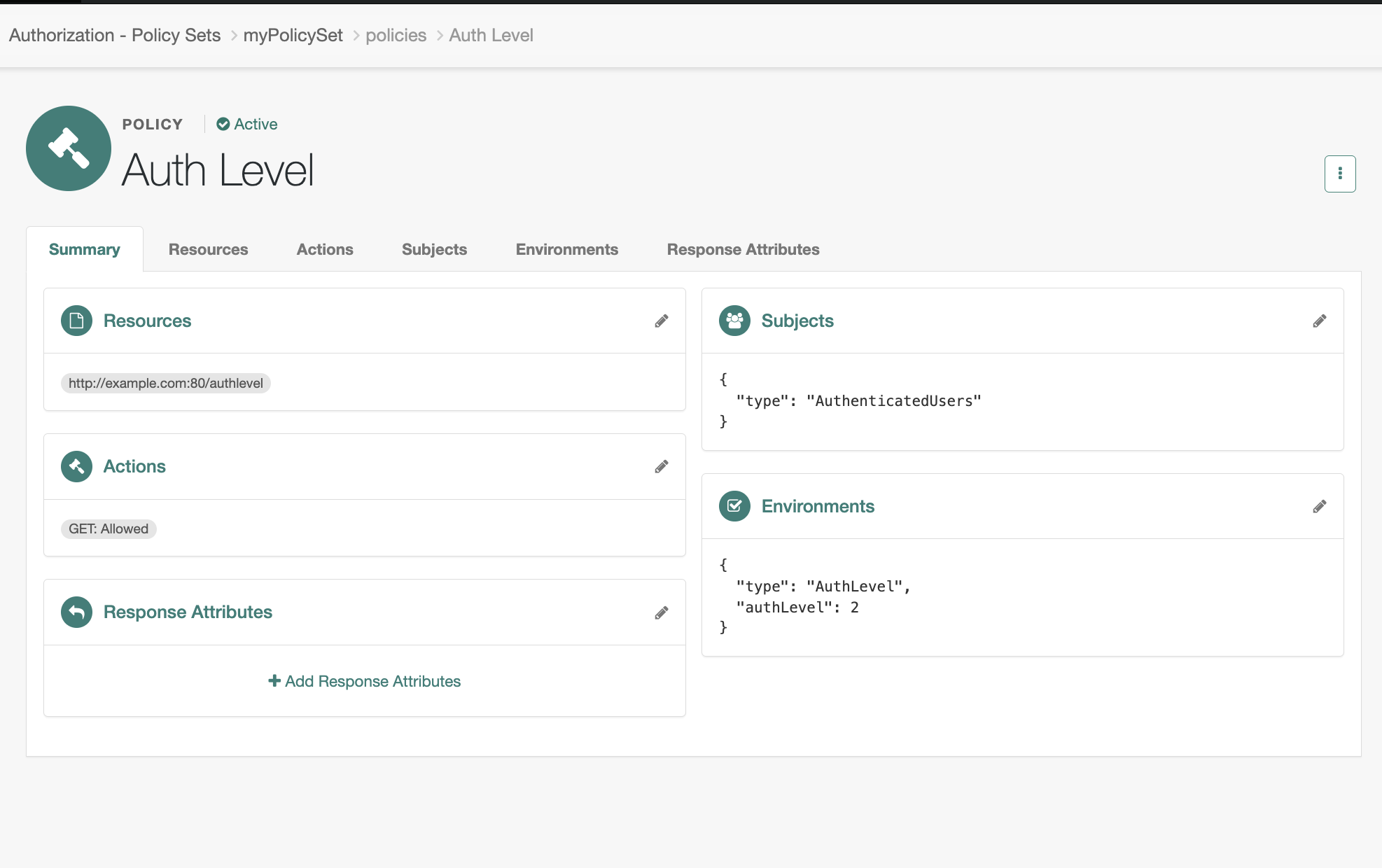

    policy node authlevel policy

  • The outcome of the policy evaluation determines the path of the journey:

    Accept

    The policy grants access to the resource and the journey proceeds to the Set Success Details node.

    Reject

    The policy rejects access to the resource and the journey proceeds to the Set Failure Details node.

    Error

    An error in policy evaluation leads the journey to the Set Error Details node.

Availability

Product Available?

PingOne Advanced Identity Cloud

Yes

PingAM (self-managed)

Yes

Ping Identity Platform (self-managed)

Yes

Inputs

If policy evaluation requires a subject, make sure the username is collected earlier in the journey.

Dependencies

This node requires the configuration of a policy set that has at least one policy with a resource and an action.

Learn about configuring policies in Policies in the UI.

Configuration

Property Usage

Policy Set

Select a policy set from the list to use for the evaluation of the policy.

If you use a Configuration Provider node to set dynamic values, set this property to the policy set identifier, for example, myPolicySet.

Resource

The resource name to use for policy evaluation, for example, http://example.com:80/time.

Make sure this matches the resource in the policy.

Action

The action to use for policy evaluation, for example, GET.

Environment

(Optional) The environment parameters to include in the policy evaluation request, specified as key:value pairs:

  1. Click .

  2. In the Key field, enter the name of the environment condition.

  3. In the Value field, enter the value of the environment condition.

  4. Click Done.

  5. Click Add to repeat and add more conditions.

  6. Save your changes.

Outputs

This node doesn’t change the shared state.

Callbacks

This node doesn’t send any callbacks.

Outcomes

Accept

Policy evaluation succeeded.

Reject

Policy evaluation didn’t succeed.

Error

An error occurred during policy evaluation.

Errors

The node logs an error if policy evaluation fails.
