PingAuthorize

Connecting a service

Connect PingAuthorize to external services to define data integrations.

Service connections in PingAuthorize enable you to augment authorization events with real-time data. For example, you might use signals obtained from a risk service connection in a policy that determines whether a device requires step-up authentication.

Steps

  1. In the Policy Editor, go to Trust Framework.

  2. On the Services tab, click the icon and select Add new Service.

  3. Enter a unique Name for the service.

    Periods (.) are not allowed in the name.

  4. (Optional) Enter a Description of the service’s purpose.

    The description is only visible on the Services tab, but it can help policy authors understand how to use services in policies.

  5. (Optional) To nest the service under a parent in the tree, in the Parent list, select a parent service.

    Nesting helps group related services together. You can move the service to another location in the tree by selecting a different parent service. To remove nesting, click the Delete icon and leave Parent blank.

  6. Select a Service Type.

    Choose from:

    • None: This is for a parent service. Nest other services under a parent to help organize services in the tree structure. There are no additional settings to complete for this type of service.

    • Database: Connects to relational databases and retrieves information through SQL queries. Learn more about database service settings in Database services.

    • HTTP: Connects to HTTP endpoints accessible over the public internet. Learn more about HTTP service settings in HTTP services.

    • LDAP: Connects to LDAP sources and retrieves information through database queries. Learn more about LDAP service settings in LDAP services.

  7. (Optional) In the Value Settings section, define the Type of data returned by the service, and select the Secrets checkbox to encrypt that data in PingAuthorize logs.

    Depending on which mode you’ve configured for PingAuthorize, service data secrets are recorded in one of these logs:

    • Embedded PDP mode: The service data values are encrypted in PingAuthorize/policy-decision.log.

    • External PDP mode: The service data values are encrypted in the decision-audit.log file distributed with the Policy Editor, but not PingAuthorize/policy-decision.log.

    To decrypt a service’s data values, run the following command:

    'echo -n "RSNH/SPsNJSFQyyLSxdKsw==" | base64 -d | openssl enc -aes-128-ecb -d -K "54655374506153735068526153653939"

    In the previous example, RSNH/SPsNJSFQyyLSxdKsw== represents the encrypted service value string, and 54655374506153735068526153653939 represents the encryption key in hexadecimal. By default, the encryption key is TeStPaSsPhRaSe99 and cannot be changed.

  8. (Optional) In the Timeout and Retry section, enter a Request Timeout value if you want to change the time, in milliseconds, that PingAuthorize waits for a service request to complete.

    The default timeout is 2000. If the timeout elapses before a successful service response, PingAuthorize cancels the service request, resulting in a timeout error.

  9. (Optional) In the Rate Limits section, enter a Requests per Second value to change the maximum number of requests that decision points can make to the service per second.

    The default value is 1000000.

  10. (Optional) Enable caching for the service.

    Caching improves system performance by storing data returned from a service and reusing it on subsequent service requests until the cache expires. Learn more in Service caching.

    1. Select the Enable Caching checkbox.

    2. For the Time to Live, enter the number of minutes that you want to store data retrieved from the service in the cache.

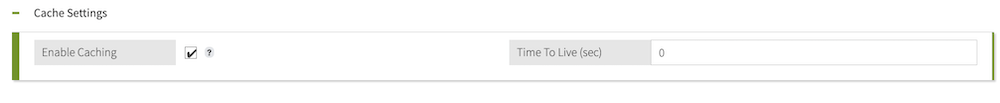

      Screen capture of the Cache Settings section of a service with the Enable Caching checkbox selected.

      The maximum time to live is 1440 minutes or 1 day.

    3. (Optional) If you’re enabling caching for an HTTP service, click Header and select headers to exclude from the cache key.

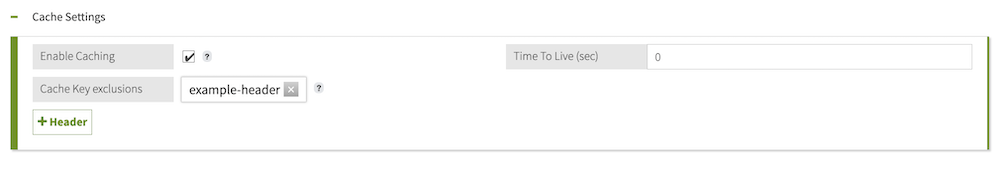

      Screen capture of the Cache Settings section of a service with the Enable Caching checkbox selected and an example header exclusion

      Because any changes to the cache key invalidate the service cache, removing headers preserves the validity of the cache even when values of those headers change.
