AM as a RADIUS client

The following diagram illustrates the flow of packets between AM (the RADIUS client) and the RADIUS server during an authentication conversation, where the RADIUS server requests a one-time password (OTP) from the user:

Flows between a user, the authentication nodes, and an external RADIUS server.

All conversations between AM and the RADIUS server are secured with a shared secret (mapped to the am.authentication.nodes.radius.identifier.secret label).

Configure RADIUS authentication

AM provides two authentication nodes to handle RADIUS authentication, where AM is acting as a RADIUS client:

RADIUS Decision node

The RADIUS Decision node performs authentication with the RADIUS server.

The node performs the following actions:

  • Sends an Access-Request packet to the RADIUS server to initiate the authentication request.

  • Handles the RADIUS server’s response to determine the outcome of the authentication attempt.

  • Sends additional Access-Request packets if the RADIUS server responds with an Access-Challenge packet requesting more information from the user.

RADIUS Challenge Collector node

The RADIUS Challenge Collector node presents challenge messages to users, such as requesting an OTP, and collects their response.

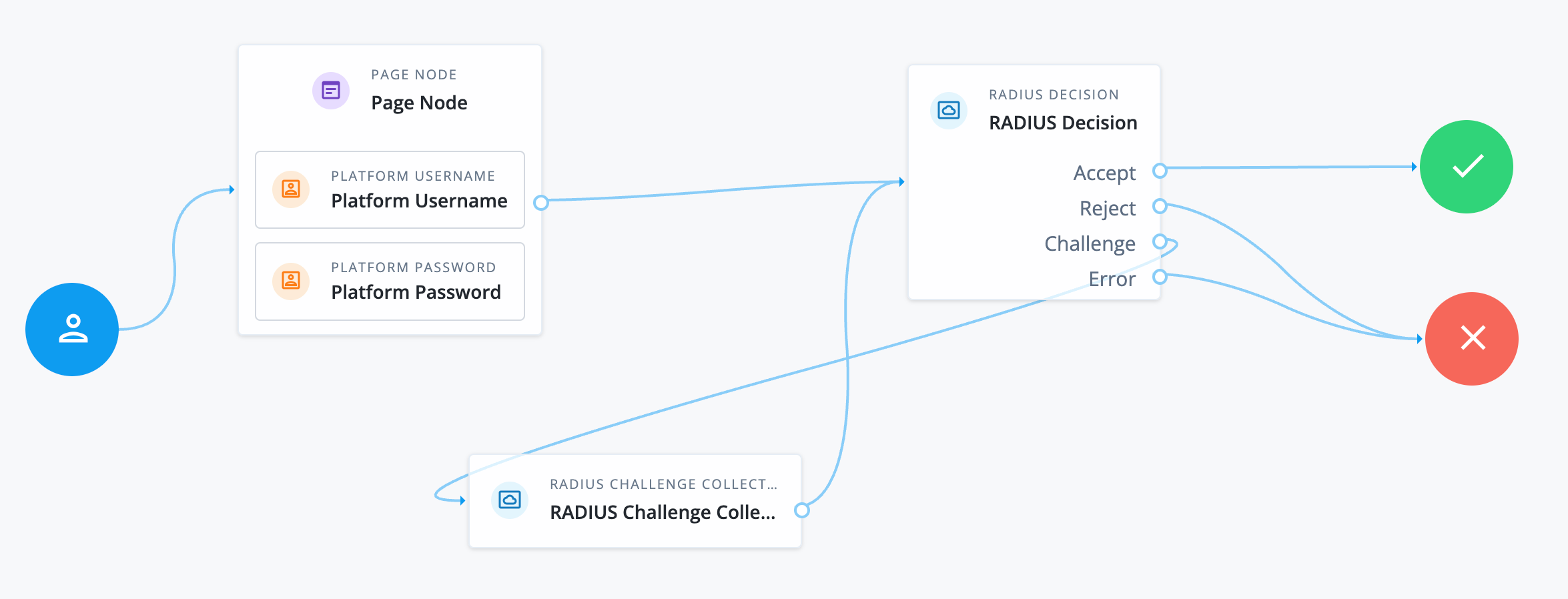

Create a journey using these nodes to implement RADIUS authentication:

RADIUS authentication journey

Learn more in the RADIUS authentication example.
