SSO in integrated mode

Integrated mode uses journey nodes such as the SAML2 Authentication node to handle the SAML 2.0 authentication flow.

Integrated mode supports SSO only.

SP-initiated SSO in integrated mode

This flow uses a SAML2 Authentication node in a journey on the SP. The node handles the SAML 2.0 protocol details for you.

When an end user initiates a SAML SSO flow, for example, by clicking a link to a resource on the SP’s website, they’re redirected to the IdP for authentication. On successful authentication, the flow returns to the SP for completion of the authentication journey.

Example SP-initiated SSO flow in integrated mode

In this diagram, Advanced Identity Cloud is configured as a SAML 2.0 SP. A user requests authentication to a journey that contains the SAML2 Authentication node.

Figure 1. SAML 2.0 SP-initiated SSO integrated mode flow

An end user initiates authentication to an Advanced Identity Cloud SAML 2.0 SP. The login URL references an authentication journey that includes a SAML2 Authentication node. For example, https://<tenant-env-fqdn>/am/XUI/?service=mySAM2LTree.
Advanced Identity Cloud runs any authentication nodes that precede the SAML2 Authentication node in the journey.
The SAML2 authentication node processing begins.
The node requests an assertion from the IdP. The configuration of the SAML2 Authentication node determines the details of the request.
The IdP requests the user to authenticate if they’ve not already done so.
The user provides their credentials.
The IdP authenticates the user successfully.
The IdP responds to the SP with a SAML assertion.
If the SAML assertion contains a non-transient name ID, Advanced Identity Cloud searches the identity store and attempts to locate a user with the same name ID.

If the name ID for the account exists, the journey continues.

If the name ID doesn’t exist...
... and the journey has a Create Object node, the node creates a new account in the SP using auto-federation that includes the name ID in the user profile.
... and a method of authenticating the user is available in the journey, Advanced Identity Cloud authenticates the user.
The Write Federation Information node writes the persistent name ID in the user profile.

For more information about linking when autofederation is not configured, refer to Link identities for authentication.
The journey continues…
… and authentication is successful.

IdP-initiated SSO in integrated mode

In an IdP-initiated SSO flow using integrated mode, an end user authenticates with the IdP and is redirected to the SP. When the SP receives the SAML response, the flow continues to the journey configured on the hosted SP. If no journey is set, the flow results in an error.

You still need to trigger IdP-initiated SSO using a URL.

Example IdP-initiated SSO flow in integrated mode

In this diagram, Advanced Identity Cloud is configured as a SAML 2.0 SP. An authenticated user is redirected to an Advanced Identity Cloud authentication journey.

Figure 2. SAML 2.0 IdP-initiated SSO integrated mode flow

An end user initiates authentication to a third-party SAML 2.0 remote IdP.
If the user isn’t authenticated in the IdP, the IdP requests their credentials.

The user provides their credentials for validation.
Authentication is successful.
The IdP creates a SAML response containing a signed SAML assertion and sends it to the SP’s assertion consumer service URL, typically using the HTTP POST binding.
The SP processes the assertion and redirects the SAML flow to the URL set as Redirect Tree Name or Local Authentication URL in the hosted SP configuration.
If the journey has a Scripted Decision node, Advanced Identity Cloud runs the script, including any logic to validate the assertion.

You can use the getAssertion method of the samlApplication binding to check details in the assertion.
If the journey has a SAML2 Authentication node, it checks whether the IdP entity ID in the assertion matches the one set in configuration.
The SAML2 Authentication node can also use the nameID to locate a user in the identity store.
Advanced Identity Cloud continues to process the remaining nodes in the journey...
... and authentication is successful.

Implement SAML 2.0 single sign-on in integrated mode

Complete the following tasks to implement SAML 2.0 SSO in integrated mode:

Prepare entity providers and a circle of trust and update endpoints in the SP configuration.

Learn more in Configure Advanced Identity Cloud for integrated mode.
Configure a journey:
- For SP-initiated SSO, make sure you include a SAML2 Authentication node. Learn more in Create accounts dynamically during federation.
- For IdP-initiated SSO, configure a redirect journey. Learn more in configure a redirect journey.

Configure Advanced Identity Cloud for integrated mode

If you haven’t already done so, configure SAML 2.0 by performing the tasks listed in Deployment considerations.
Under Native Consoles > Access Management, create a hosted SP by following the steps in Create a hosted entity provider.

You must configure the attribute map (Assertion Processing > Attribute Mapper) first. This determines how Advanced Identity Cloud maps assertion attributes from the IdP to the user’s profile on the SP.

During the authentication process, the mapping is used to find existing users on the SP and to create or update user accounts on the SP.

For IdP-initiated SSO, you must configure a redirect journey for the hosted SP to run after validating the IdP response.
Configure a remote IdP by following the steps in Import and configure a remote entity provider.

When you specify the circle of trust for the IdP, use the Add to Existing option and specify the circle of trust you created when you created the hosted SP.
Change the Assertion Consumer Service locations in the hosted SP configuration.

The default locations support standalone mode only, so you must update them when implementing integrated mode:
- Under Native Consoles > Access Management, go to Realms > Realm Name > Applications > Federation > Entity Providers > SP Name > Services > Assertion Consumer Service.
- Change the location of the HTTP-Artifact consumer service to use AuthConsumer, rather than Consumer. For example, if the location is https://<tenant-env-sp-fqdn>/am/Consumer/metaAlias/sp, change it to https://<tenant-env-sp-fqdn>/am/AuthConsumer/metaAlias/sp.
- Similarly, change the location for the HTTP-POST consumer service to use AuthConsumer rather than Consumer.

  You don’t need to change the location for the PAOS service because integrated mode does not support the PAOS binding.

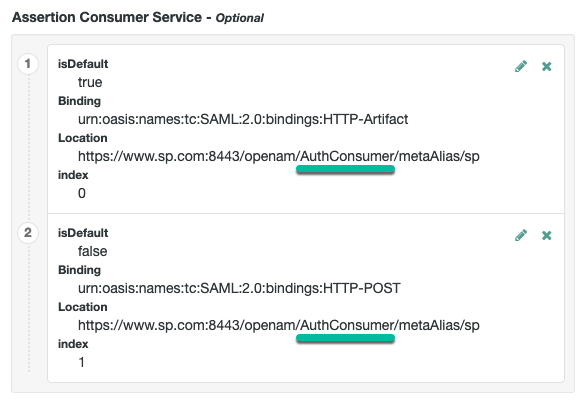

- The results will resemble the following:
- Save your changes.

You can now configure journey(s) for your SAML flow, for example, to dynamically create end-user accounts.

Create accounts dynamically during federation

In integrated mode, the SP can use journeys to tailor the authentication experience to the users. You can create multiple complex journeys to satisfy the requirements of your organization.

The example shown in this procedure uses the SAML 2.0 node to request an assertion from the IdP, and then creates an account for the user in the SP if one doesn’t exist.

If you aren’t using auto-federation, you can also use journeys to create persistent links between user accounts.

Perform the steps in this procedure to configure a journey similar to the following:

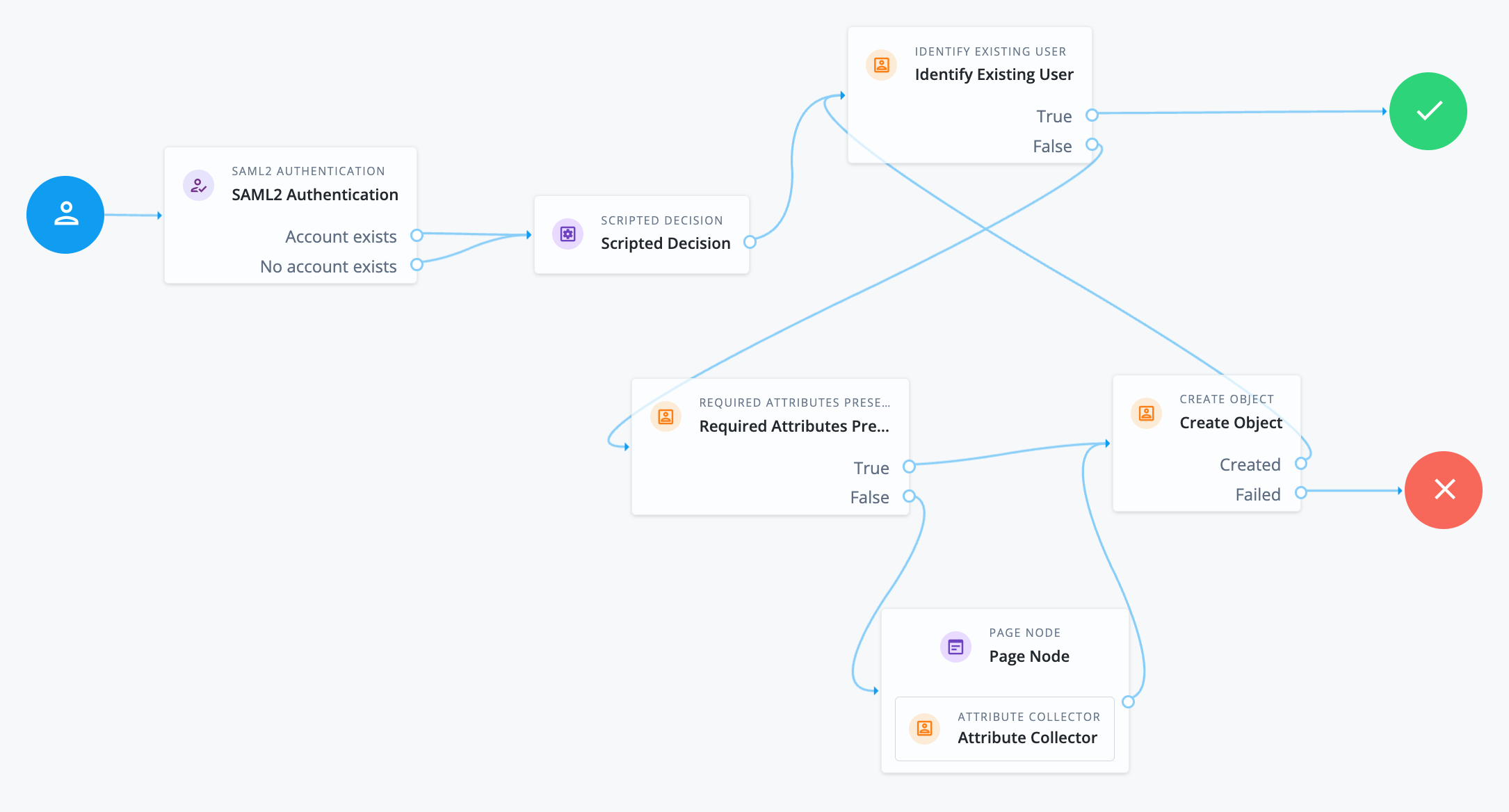

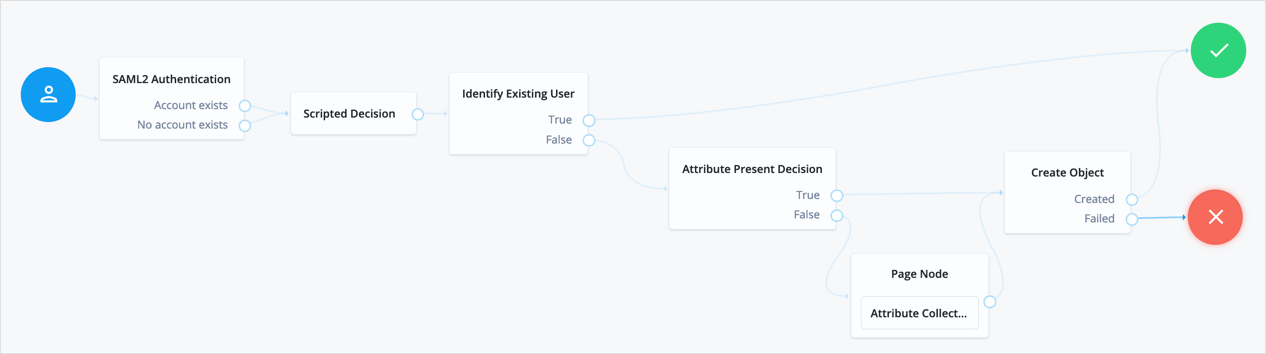

Figure 3. Example journey to create accounts dynamically

Add a SAML2 Authentication node.

Integrated mode is SP SSO-initiated only, and SLO is not supported.

The node processes the assertion, makes its contents available to the journey’s state in the userInfo object, and tries to map the assertion’s nameID using the uid mapping in the SP’s assertion map.

If the node finds a match, the journey continues through the Account Exists output. Otherwise, the journey continues through the No Account Exists output.

The attribute the node uses to map the nameID is not configurable. This example adds nodes to process the userInfo object and matches its contents to the managed user’s schema.

To verify or inspect the SAML flow, place a Scripted Decision node after the SAML node and query the samlApplication binding.

Add a Scripted Decision node to copy the information from the assertion to the authentication journey’s shared state.

Example script

Next-generation
Legacy

if (nodeState.get("userInfo")) {
  if (nodeState.get("objectAttributes")) {
    nodeState.remove("objectAttributes");
  }
  var userName=null,sn=null,mail=null;

  try {
    var attribs = nodeState.get("userInfo")["attributes"];

    userName=attribs["uid"][0];
    sn=attribs["sn"][0];
    mail=attribs["mail"][0];

  } catch (e) {
    logger.error("Error getting userInfo: " + e);
  }
  nodeState.putShared("username", userName);
  nodeState.putShared("objectAttributes", {"userName":userName,"sn":sn,"mail":mail, "givenName": userName});
}
action.goTo("true");

var fr = JavaImporter(org.forgerock.openam.auth.node.api.Action);

if (nodeState.get("userInfo")) {
  if (nodeState.get("objectAttributes")) {
    nodeState.remove("objectAttributes");
  }
  var userName=null,sn=null,mail=null;

  try {
    var attribs = nodeState.get("userInfo").get("attributes");

    userName=attribs.get("uid").get(0).asString();
    sn=attribs.get("sn").get(0).asString();
    mail=attribs.get("mail").get(0).asString();

  } catch (e) {
    logger.error("Error getting userInfo: " + e);
  }
  nodeState.putShared("username", userName);
  nodeState.putShared("objectAttributes", {"userName":userName,"sn":sn,"mail":mail, "givenName": userName});
}
action = fr.Action.goTo("true").build();

For IdP-initiated flows, you can use the samlApplication binding’s getAssertion method.

Learn more in the Scripted Decision node API.

Add an Identify Existing User node to search the user with the appropriate attribute.

For example, userName.
Complete the journey by adding the required nodes to create the new account if it doesn’t exist on the SP.

The scripted decision node placed the attributes required to create the account in the journey’s shared state; however, these might not be enough to satisfy your managed user rules.

To ensure the required attributes are available, use the Required Attributes Present node to check them and the Attribute Collector node to collect the ones missing.

Finally, to create the account, use the Create Object node.

You must configure the appropriate identity resource in this node. For example, managed/alpha_user.
(Optional) If you haven’t configured auto-federation, you can add the Write Federation Information node to create a persistent link between the accounts.

Refer to Link identities by using journeys for an example.
