Link identities for authentication

IdPs and SPs must be able to communicate about users. In some cases, the IdP chooses to communicate a minimum of information about an authenticated user; for example, a generated, opaque NameID that cannot directly be used to locate to an identity in the SP identity store.

Advanced Identity Cloud can use these pseudonym identifiers for establishing links between otherwise unrelated accounts, by requiring the user to authenticate to the SP using a linking authentication mechanism.

Common use cases

Choose this linking method when the assertion doesn’t identify a local account on its own, and you want the user to prove control of both identities before Advanced Identity Cloud links them:

  • First-time federated account linking: A consumer signs on to your application for the first time with a corporate or partner IdP. The NameID in the assertion is an opaque pseudonym, so Advanced Identity Cloud can’t find a local account. The linking tree authenticates the user locally, and the Write Federation Information node saves the link. On their next sign-on, the user authenticates only at the IdP.

  • Returning-user single sign-on (SSO): A user whose accounts are already linked signs on again. Advanced Identity Cloud finds the saved NameID in its user store, and no local authentication is required.

  • Persistent identity association: Store the NameID in the local user’s profile so the link persists between sign-ons. Configure the tree with the persistent NameID format, and use the Write Federation Information node on the successful authentication outcome. Learn more in Choose persistent or transient federation.

First authentication to the SP

The following flow shows the sequence of events that occurs when a user first attempts to authenticate to the Advanced Identity Cloud SP:

Sequence diagram: first authentication to the SP
Figure 1. First authentication to the SP flow

  1. Accessing the SP

    A user attempts to access a service and is redirected to Advanced Identity Cloud which acts as the SP, specifying the SAML 2.0 service in the login URL.

    For example, a journey containing the SAML2 Authentication node:

    https://<tenant-env-sp-fqdn>/am/XUI/#login/&service=spSAMLJourney

  2. Authentication at the IdP

    Advanced Identity Cloud redirects the user to the IdP. The user authenticates successfully to the IdP. The IdP returns a SAML assertion to Advanced Identity Cloud.

  3. SP attempts to access a federated identity

    Advanced Identity Cloud attempts to locate the identity in its user store but finds no link between the IdP identity and a local identity.

  4. Invocation of the linking authentication node(s)

    Because no link is found, Advanced Identity Cloud uses the configured authentication journey to authenticate the user.

  5. Identity federation

    After successfully authenticating the user, Advanced Identity Cloud writes the name ID from the assertion into the user’s local profile, creating a permanent link between the two identities.

    For more information on creating permanent links between identities, refer to Enable persistent federation.

    Find an example of a journey that links identities in Create accounts dynamically during federation.

Subsequent authentications to the SP

The following flow shows the sequence of events that occurs during subsequent authentication attempts after the user’s identities on the IdP and SP have been federated:

Sequence diagram: subsequent authentications to the SP
Figure 2. Subsequent authentications to the SP flow

  1. Accessing the SP

    A returning user attempts to access their service and is redirected to Advanced Identity Cloud, which acts as the SP. Their login URL specifies the SAML 2.0 login service.

    For example, a journey containing the SAML2 Authentication node and the Write Federation Information node:

    https://<tenant-env-sp-fqdn>/am/XUI/#login/&service=spSAMLJourney.

  2. Authentication at the IdP

    Advanced Identity Cloud redirects the user to the IdP, and the user authenticates successfully at the IdP. The IdP returns a SAML assertion to Advanced Identity Cloud.

  3. SP attempts to access a federated identity

    Advanced Identity Cloud attempts to locate the name ID in its user store. The search for the name ID succeeds.

    Because there’s a match, the user doesn’t need to authenticate to Advanced Identity Cloud and can access the service.

Link accounts persistently

If you’re not using auto-federation, perform the steps in this procedure to configure a journey, similar to the following, to link accounts persistently.

This procedure relies on integrated mode SSO.

SLO is not supported for this procedure.

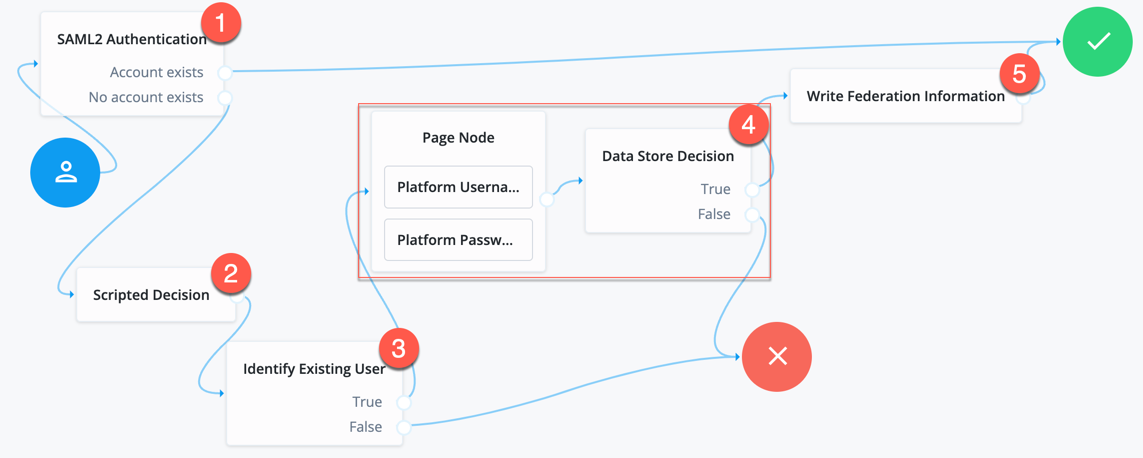

Example journey to link accounts persistently

  1. Add a SAML2 Authentication node.

    Ensure the NameID Format specified is persistent.

    The node processes the assertion, makes its contents available to the journey’s shared state in the userInfo object, and tries to map the assertion’s nameID using the uid mapping in the SP’s assertion map.

    If the node finds a match, the journey continues through the Account Exists output. Otherwise, the journey continues through the No Account Exists output.

    The attribute the node uses to map the nameID is not configurable, and this example adds nodes to process the userInfo object and match its contents to the managed user’s schema instead.

  2. Add a Scripted Decision node to copy the information from the assertion to the journey’s shared state.

    Example script

    • Next-generation

    • Legacy

    if (nodeState.get("userInfo")) {
  if (nodeState.get("objectAttributes")) {
    nodeState.remove("objectAttributes");
  }
  var userName=null,sn=null,mail=null;

  try {
    var attribs = nodeState.get("userInfo")["attributes"];

    userName=attribs["uid"][0];
    sn=attribs["sn"][0];
    mail=attribs["mail"][0];

  } catch (e) {
    logger.error("Error getting userInfo: " + e);
  }
  nodeState.putShared("username", userName);
  nodeState.putShared("objectAttributes", {"userName":userName,"sn":sn,"mail":mail, "givenName": userName});
}
action.goTo("true");
    var fr = JavaImporter(org.forgerock.openam.auth.node.api.Action);

if (nodeState.get("userInfo")) {
  if (nodeState.get("objectAttributes")) {
    nodeState.remove("objectAttributes");
  }
  var userName=null,sn=null,mail=null;

  try {
    var attribs = nodeState.get("userInfo").get("attributes");

    userName=attribs.get("uid").get(0).asString();
    sn=attribs.get("sn").get(0).asString();
    mail=attribs.get("mail").get(0).asString();

  } catch (e) {
    logger.error("Error getting userInfo: " + e);
  }
  nodeState.putShared("username", userName);
  nodeState.putShared("objectAttributes", {"userName":userName,"sn":sn,"mail":mail, "givenName": userName});
}
action = fr.Action.goTo("true").build();

    You can also query the samlApplication binding on the SP side to get the assertion.

    Learn more in the Scripted Decision node API.

  3. Add an Identify Existing User node to search the user with the appropriate attribute.

    For example, userName.

  4. Authenticate the user to the SP.

  5. Add the Write Federation Information node to the successful outcome of the authentication process to create the link between the accounts.

    If a transient link exists, it is converted into a persistent one.
