Token generator (SP) processing overview

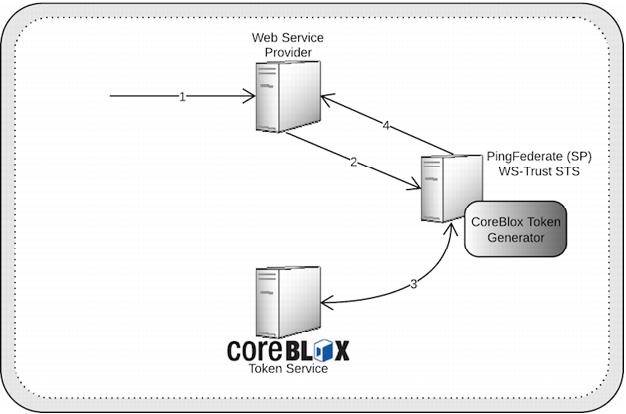

The following figure illustrates how PingFederate and the Coreblox Token Generator interact with the Coreblox Token Service (CTS):

Diagram showing how the SP Token Generator works with PingFederate and the CTS.

Processing Steps

  1. The Web Service Provider (WSP) accepts an incoming SAML assertion.

  2. The WSP sends a Request Security Token (RST) message to the PingFederate WS-Trust Security Token Service (STS).

  3. The Token Generator parses the attributes in the SAML assertion and queries the CTS for a valid token.

  4. The CoreBlox session token and mapped SAML attributes are embedded in a Request Security Token Response (RSTR) that’s sent back to the WSP.

Next steps

Configure the SP token generator.
